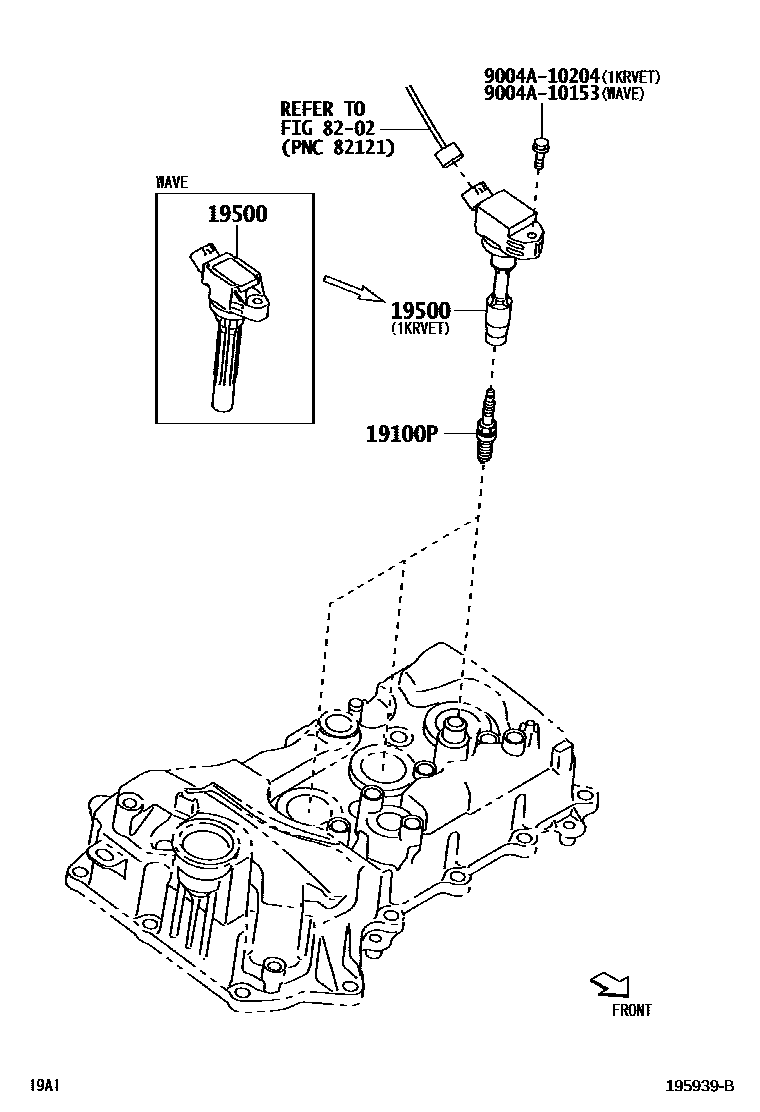

Toyota RAIZE — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90048-51220×3i1KRVET..A250202104-202608

NGK SILKAR7G8G

main90048-51223×3iWAVE..A251202104-202208

DENSO FC20HRQ8

main9004A-91084×3iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202209-202608

DENSO FC20HR-Q8

19500COIL ASSY, IGNITION

main19500-B1050×3iWAVE..A251202104-202208

main19500-BZ030×3iWAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X)202209-202608

main90919-02281×3i1KRVET..A250202104-202608

8202

9004A10153

main9004A-10153

9004A10204

main9004A-10204

5 parts on this diagram · 1 diagram in section
