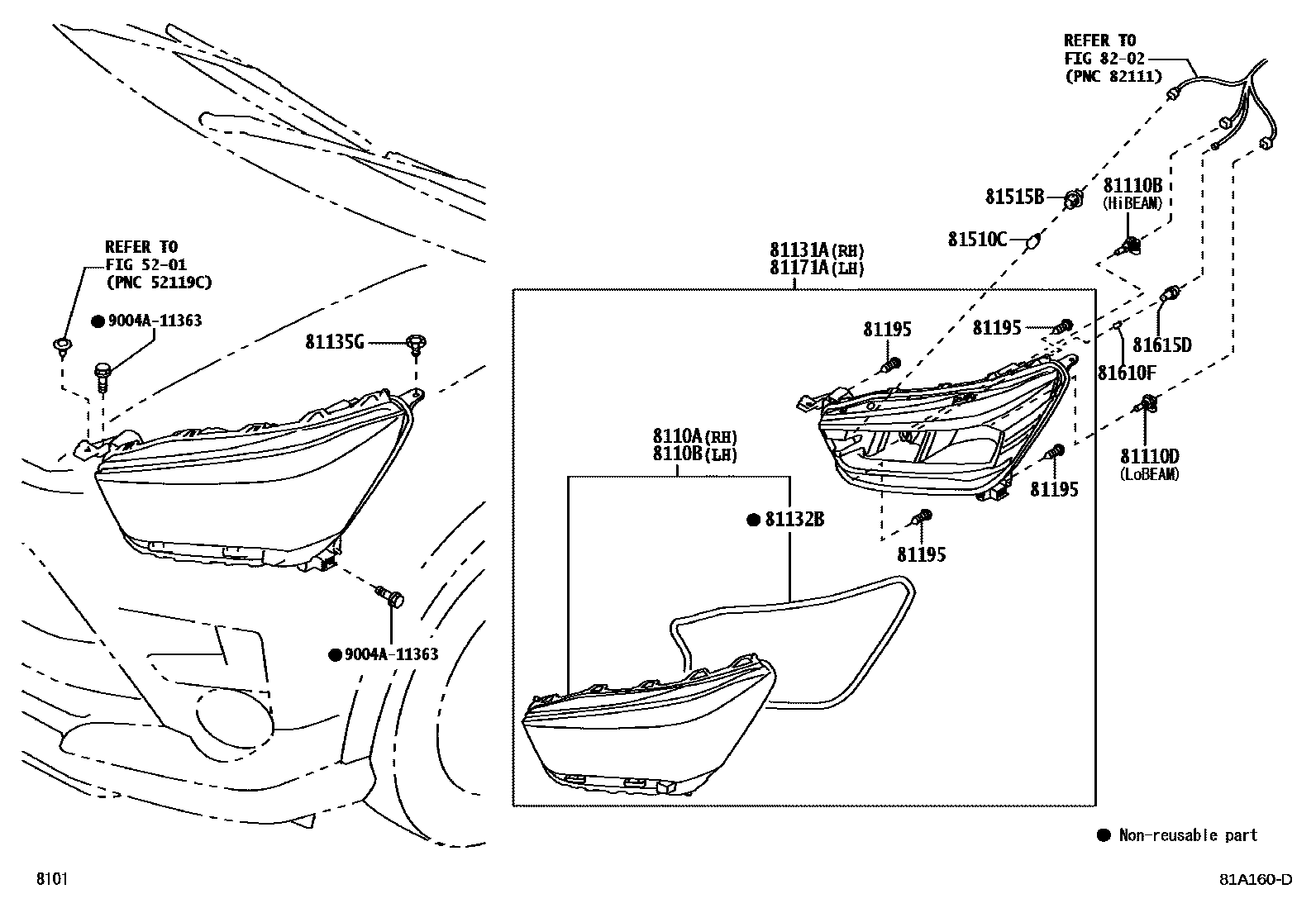

Toyota RAIZE — HEADLAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-BZ040i202108-202608

main8110A-BZ050i202104-202608

main8110A-BZ060i202104-202608

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-BZ040i202108-202608

main8110B-BZ050i202104-202608

main8110B-BZ060i202104-202608

81110HEADLAMP ASSY, RH

main81110-BZ800i202104-202607

main81110-BZ820i202108-202608

main81110-BZ840i202104-202607

main81110-BZ860i202108-202608

81110BBULB(FOR HEADLAMP, NO.1)

main9004A-81004i202108-202608

12V 60W HB3

81110DBULB(FOR HEADLAMP, NO.2)

main9004A-81017i202108-202608

12V 55W H11

81131AUNIT, HEADLAMP, RH

main81130-BZ440i202108-202608

81132BGASKET, HEADLAMP LENS

main81132-B1010i202104-202608

81135GCLIP

main90044-68378i202104-202608

81171AUNIT, HEADLAMP, LH

main81170-BZ440i202108-202608

81195SCREW, HEADLAMP

main81195-BZ010i202104-202608

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main9004A-81011i202108-202608

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81179-97204i202108-202608

81610FBULB(FOR CLEARANCE LAMP)

main9004A-81006i202108-202608

12V 5W

81615DSOCKET, CLEARANCE LAMP

main9004B-82001i202108-202608

8202WIRING & CLAMP

→ Go to FIG 82-02

9004A11363

main9004A-11363

17 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota RAIZE

This section contains 18 genuine Toyota parts for the HEADLAMP system of the Toyota RAIZE. Key components include: FRONT BUMPER & BUMPER STAY, LENS SUB-ASSY, HEADLAMP, RH, LENS SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1).
