Toyota RAIZE — CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1
MARK2
MARK3
MARK4
MARK5
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK2
MARK3
MARK4
MARK5
REPAIR,U/S 0.25
11721BEARING, CRANKSHAFT, NO.2
MARK2
MARK3
MARK4
MARK5
REPAIR,U/S 0.25
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
STD
STD
O/S 0.125,REPAIR
O/S 0.25,REPAIR
13011RING SET, PISTON
STD
STD
STD
13041BEARING, CONNECTING ROD
MARK01
MARK02
MARK03
MARK 1
MARK 2
MARK 3
MARK1
MARK2
MARK3
13201ROD SUB-ASSY, CONNECTING
MARK X
MARK Y
MARK A
MARK B
MARK A
MARK B
13211PISTON
MARK XX
MARK YY
MARK A
MARK B
main13211-BZ301-0AiWAVE..A251..L..GCC;WAVE..A251..5F..(GEN,IDN,PHL);WAVE..A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202308-202608
MARK A
main13211-BZ301-0BiWAVE..A251..L..GCC;WAVE..A251..5F..(GEN,IDN,PHL);WAVE..A251..CVT..(V,X)..(GCC,GEN,IDN,PHL)202308-202608
MARK B
13251PIN, PISTON
MARK X
MARK Y
MARK A
MARK B
MARK A
MARK B
13265BOLT, CONNECTING ROD
13400CRANKSHAFT ASSY
13405FLYWHEEL SUB-ASSY
13431AKEY, WOODRUFF(FOR DISTRIBUTOR DRIVE GEAR)
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)
9004801037
main90048-01037
9004A52139
main9004A-52139

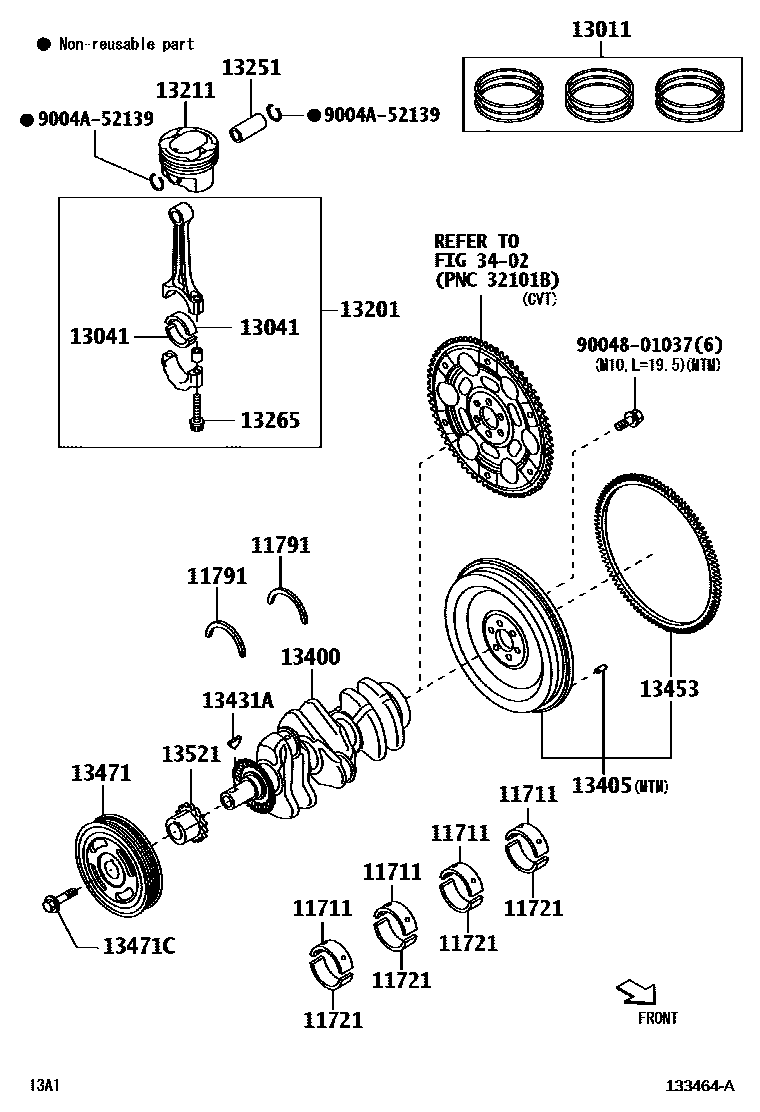

19 parts on this diagram · 2 diagrams in section
CRANKSHAFT & PISTON for Toyota RAIZE
This section contains 23 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota RAIZE. Key components include: BEARING, CRANKSHAFT, BEARING, CRANKSHAFT, NO.2, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD.
