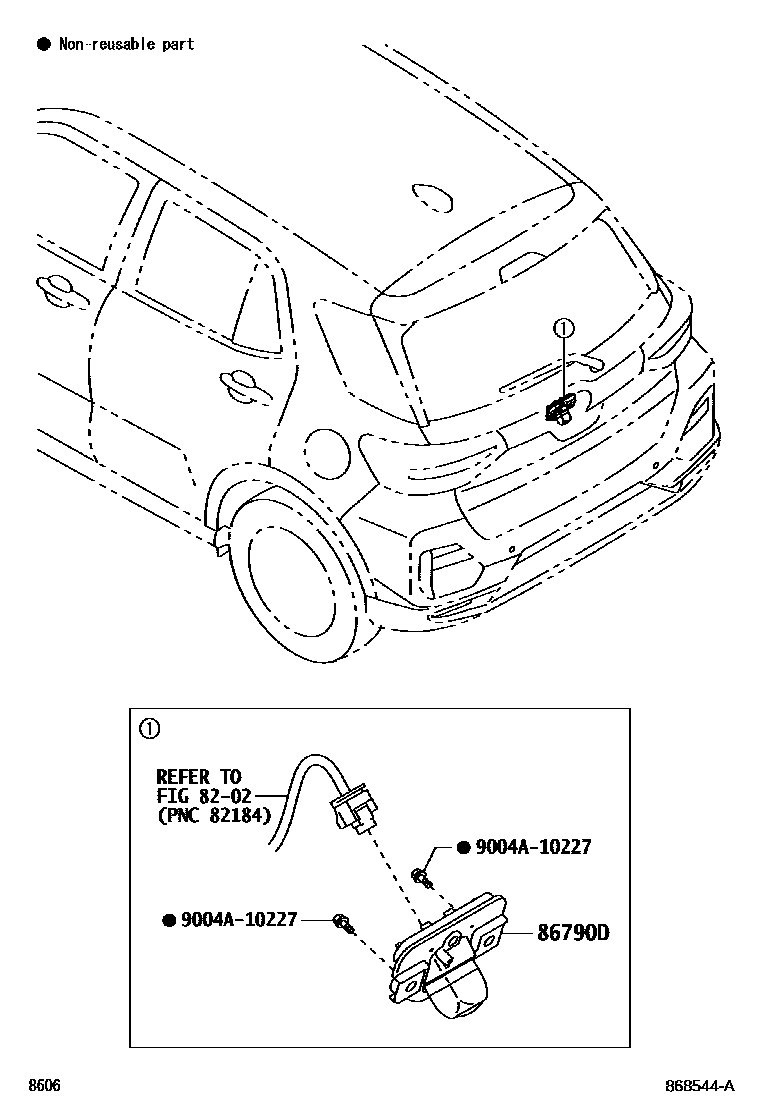

Toyota RAIZE — CAMERA & REAR MONITOR DISPLAY

8202WIRING & CLAMP

→ Go to FIG 82-02

86790DCAMERA ASSY, TELEVISION, RR

main86790-B1170i202108-202608

9004A10227

main9004A-10227

3 parts on this diagram · 1 diagram in section

CAMERA & REAR MONITOR DISPLAY for Toyota RAIZE

This section contains 3 genuine Toyota parts for the CAMERA & REAR MONITOR DISPLAY system of the Toyota RAIZE. Key components include: WIRING & CLAMP, CAMERA ASSY, TELEVISION, RR.
