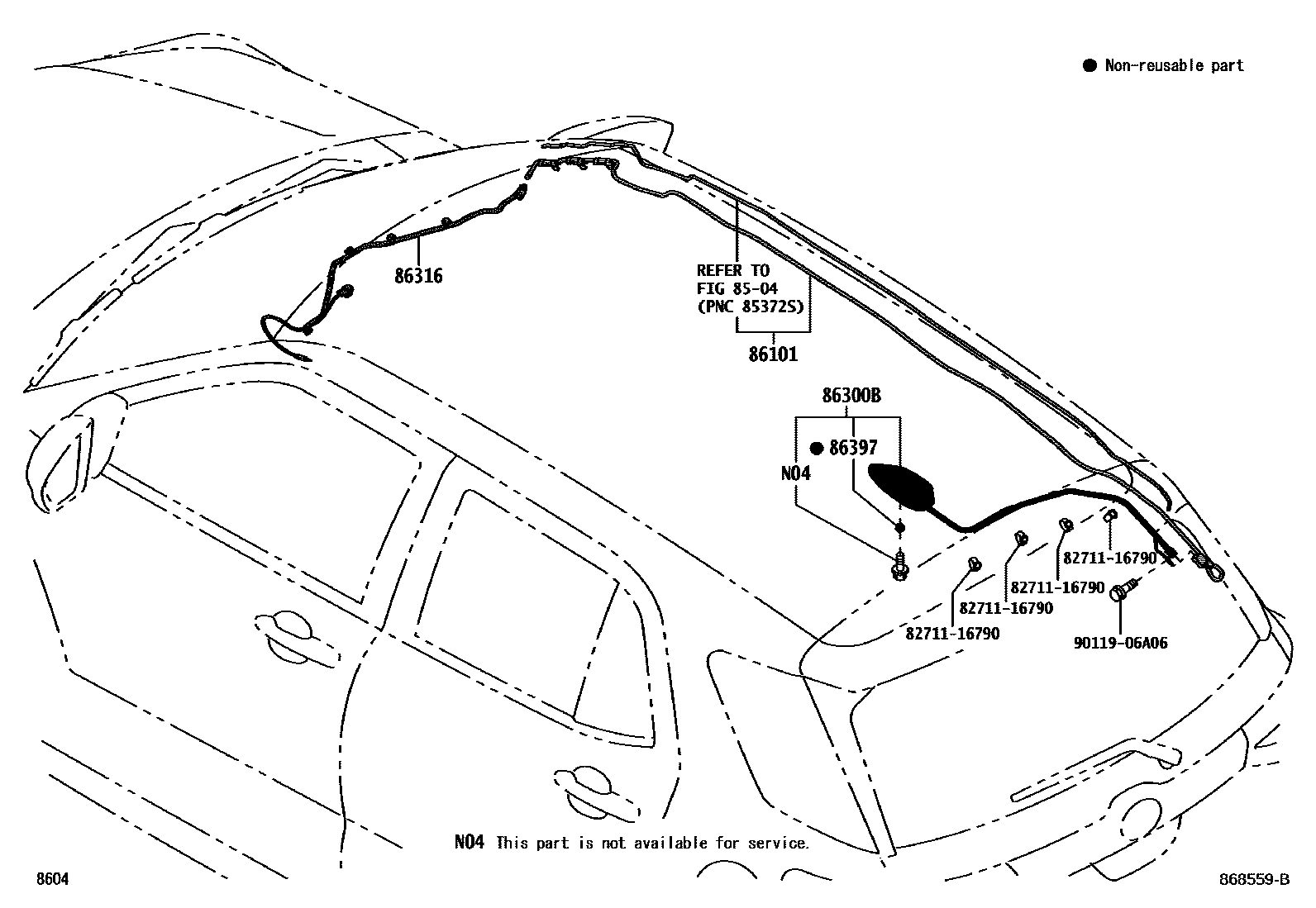

Toyota RAIZE — ANTENNA

8504REAR WASHER

→ Go to FIG 85-04

86101CORD SUB-ASSY, ANTENNA

main86316-BZ570i202110-202608

main86316-BZ590i202104-202608

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-BZ400-A0i202104-202607

WHITE,W09

main86300-BZ400-A1i202108-202607

WHITE PEARL SE.,W25

main86300-BZ400-B0i202104-202607

SILVER ME.,S28

main86300-BZ400-B1i202104-202607

GRAY ME.,1G3

main86300-BZ400-C0i202108-202607

BLACK,X13

main86300-BZ400-C0i202104-202606

BLACK,X13 ,XJ7 ,XJ8 ,XJ9 ,XK1 ,XK4

main86300-BZ400-C0i202108-202607

BLACK,X13 ,XJ5 ,XJ7 ,XJ8 ,XJ9 ,XK1 ,XK4

main86300-BZ400-D0i202104-202607

RED,R40

main86300-BZ400-F0i202104-202607

YELLOW SE.,Y13

main86300-BZ400-J0i202104-202607

TURQUOISE M.M.,B86

main86300-BZ410-C0i202110-202608

BLACK,X13

main86300-BZ410-C0i202110-202608

BLACK,X13 ,XJ7 ,XJ8 ,XJ9 ,XK1 ,XK4

main86300-BZ420i202108-202608

86316CABLE, ANTENNA

main86316-BZ560i202108-202608

main86316-BZ580i202110-202608

main86316-BZ600i202104-202607

86397PLATE, ANTENNA EARTH

main86397-B1020i202401-202608

TYPE B

main86397-B2020i202110-202312

TYPE A

main86397-BZ060i202104-202608

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9011906A06

main90119-06A06

7 parts on this diagram · 3 diagrams in section

ANTENNA for Toyota RAIZE

This section contains 9 genuine Toyota parts for the ANTENNA system of the Toyota RAIZE. Key components include: REAR WASHER, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, AMPLIFIER, NO.1, CABLE, ANTENNA, ROD, ANTENNA.
