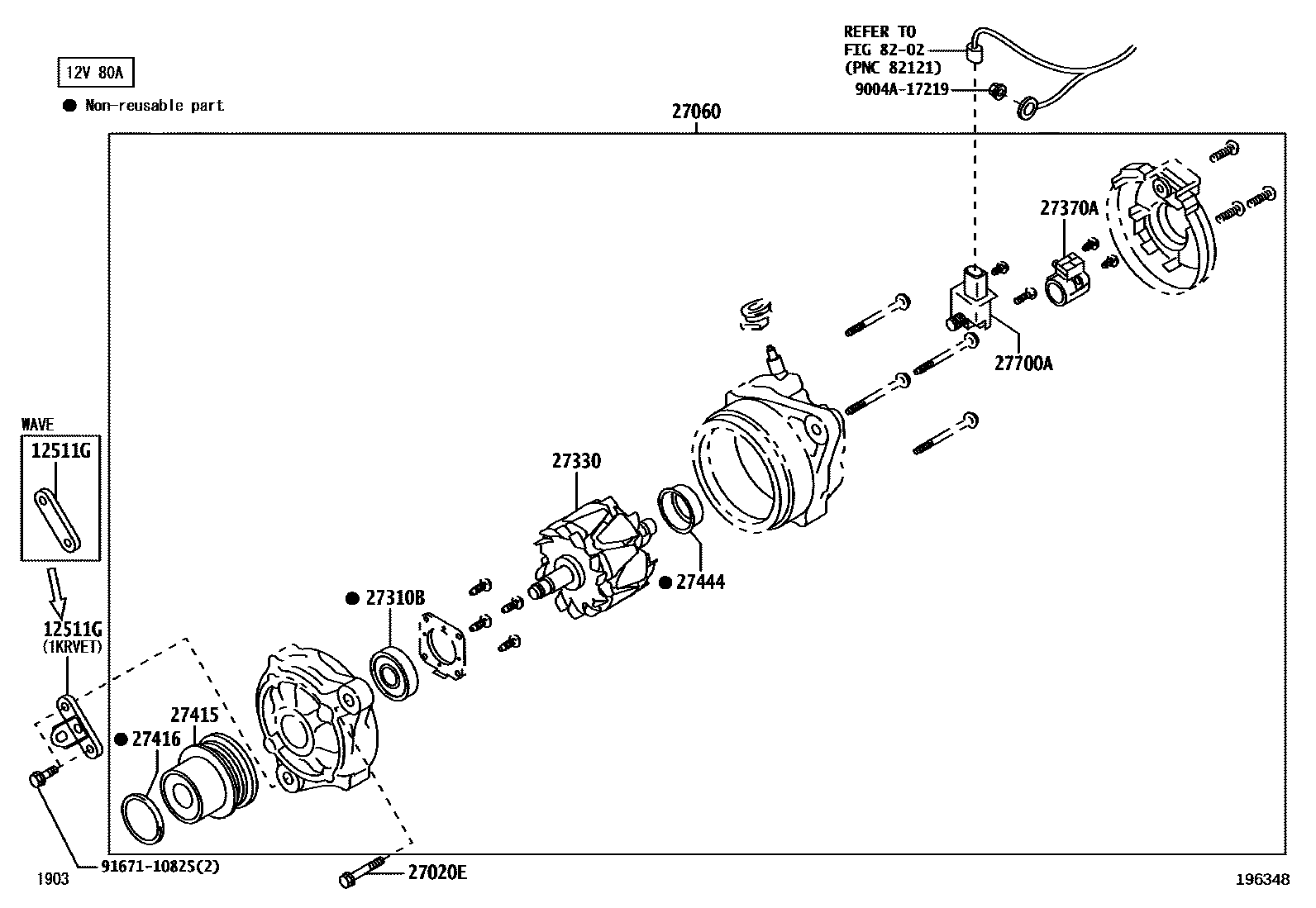

Home › Toyota › RAIZE › ALTERNATOR Toyota RAIZE — ALTERNATOR 12511G BRACKET, ALTERNATOR, NO.2
main 12511-BZ040 i WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X) 202104-202608 27020E BOLT(FOR ALTERNATOR)
main 9004A-10347 i 1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X) 202412-202608 27060 ALTERNATOR ASSY, W/REGULATOR
main 27060-BZ430 i WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X) 202104-202608 27310B BEARING(FOR ALTERNATOR DRIVE END FRAME)
main 9004C-37008 i 1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X) 202104-202608 27330 ROTOR ASSY, ALTERNATOR
main 27330-BZ060 i 1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X) 202104-202608 27370A HOLDER ASSY, ALTERNATOR BRUSH
main 27370-BZ020 i 1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X) 202104-202608 27415 PULLEY, ALTERNATOR W/CLUTCH
main 27415-B1040 i WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X) 202104-202608 27416 CAP, ALTERNATOR PULLEY
main 27416-B0010 i WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X) 202104-202608 27444 PACKING, ALTERNATOR BEARING COVER
main 27444-BZ010 i 1KRVET..A250;WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X) 202104-202608 27700A REGULATOR ASSY, GENERATOR
main 27700-BZ140 i WAVE..A251..5F;WAVE..A251..L..GCC;WAVE..A251..CVT..(V,X) 202104-202608 13 parts on this diagram · 1 diagram in section
ALTERNATOR for Toyota RAIZE This section contains 13 genuine Toyota parts for the ALTERNATOR system of the Toyota RAIZE. Key components include: BRACKET, ALTERNATOR, NO.2, BOLT(FOR ALTERNATOR), ALTERNATOR ASSY, W/REGULATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME), ROTOR ASSY, ALTERNATOR.
