Toyota RACTIS — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52290supersedes 85110-52330i200509-200705

main85110-52340supersedes 85110-52330i200705-200712

85160LINK ASSY, WINDSHIELD WIPER

main85150-52300i200712

85211BARM, FRONT WIPER, RH

main85211-52260i200509-200712

85212ABLADE, FR WIPER, RH

main85212-30370i200509-200712

85214ARUBBER, WIPER, RH

main85214-50100i200509-200712

85214BRUBBER, WIPER, LH

main85214-68010i200509-200512

main85214-68011i200512-200712

85221BARM, FRONT WIPER, LH

main85221-52260i200509-200712

85222ABLADE, FR WIPER, LH

main85222-68010i200509-200511

main85222-68011i200512-200712

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-24090i200509-200712

main85291-24100i200712-200801

main85291-50090i200802

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-28120i200509-200712

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i200509-200712

9011906864

main90119-06864

9018210006

main90182-10006

9338516014

main93385-16014

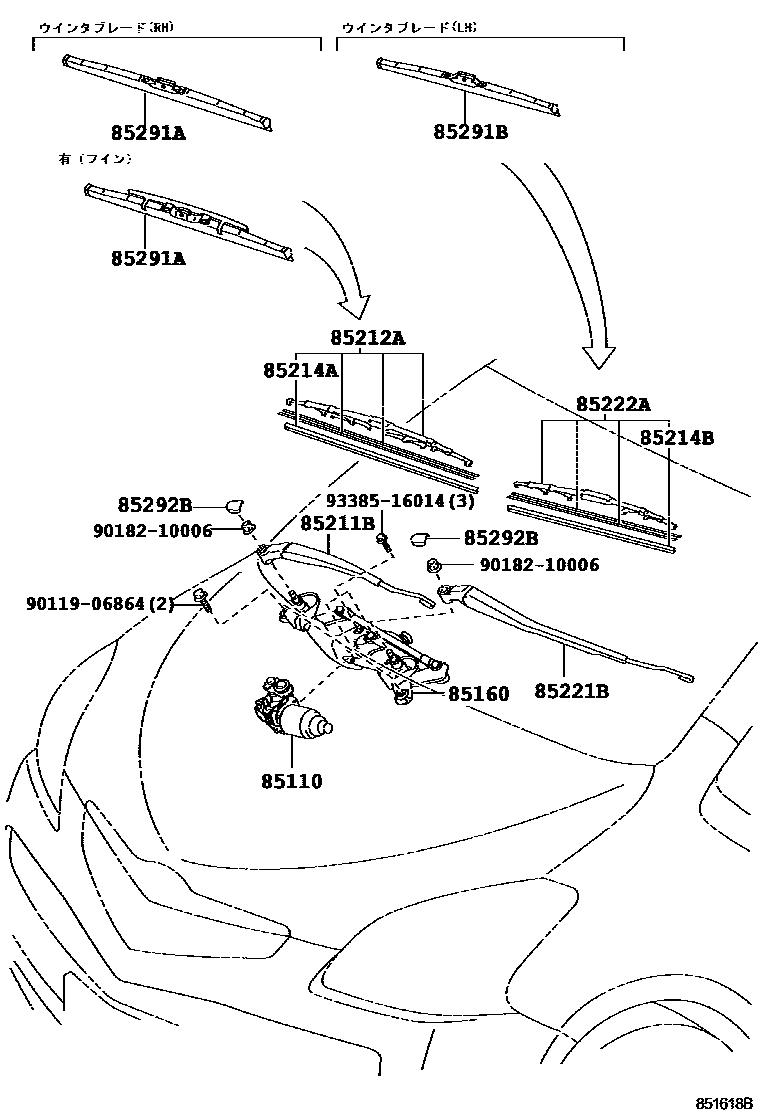

14 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota RACTIS

This section contains 14 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota RACTIS. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
