Toyota RACTIS — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52250×2iNCP10#,SCP100200712

main85381-52280×2iNCP10#,SCP100200509-200712

main85381-52290×2iNCP10#,SCP100200509-200712

main85381-52300×2iNCP10#,SCP100200712

main85381-52310×2iNCP10#,SCP100200712

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iNCP10#,SCP100200712

85330JAR ASSY, WINDSHIELD WASHER

main85315-52170supersedes 85315-52160iNCP10#,SCP100200509-200712

85332CAP, WINDSHIELD WASHER JAR

main85316-26030iNCP10#,SCP100200509-200712

85336JPROTECTOR, WASHER JAR

main85336-60300iNCP10#,SCP100200509-200712

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85385-52310iNCP10#,SCP100200509-200712

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85336-12230iNCP10#,SCP100200509-200712

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iNCP10#,SCP100200509-200712

85355VALVE, WINDSHIELD WASHER HOSE

main85321-30080iNCP10#,SCP100200509-200712

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33222

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299iNCP10#,SCP100200509-200712

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-06013iNCP10#,SCP100200509-200712

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-62031iNCP10#,SCP100200509-200712

8537152060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52060

9011906767

main90119-06767

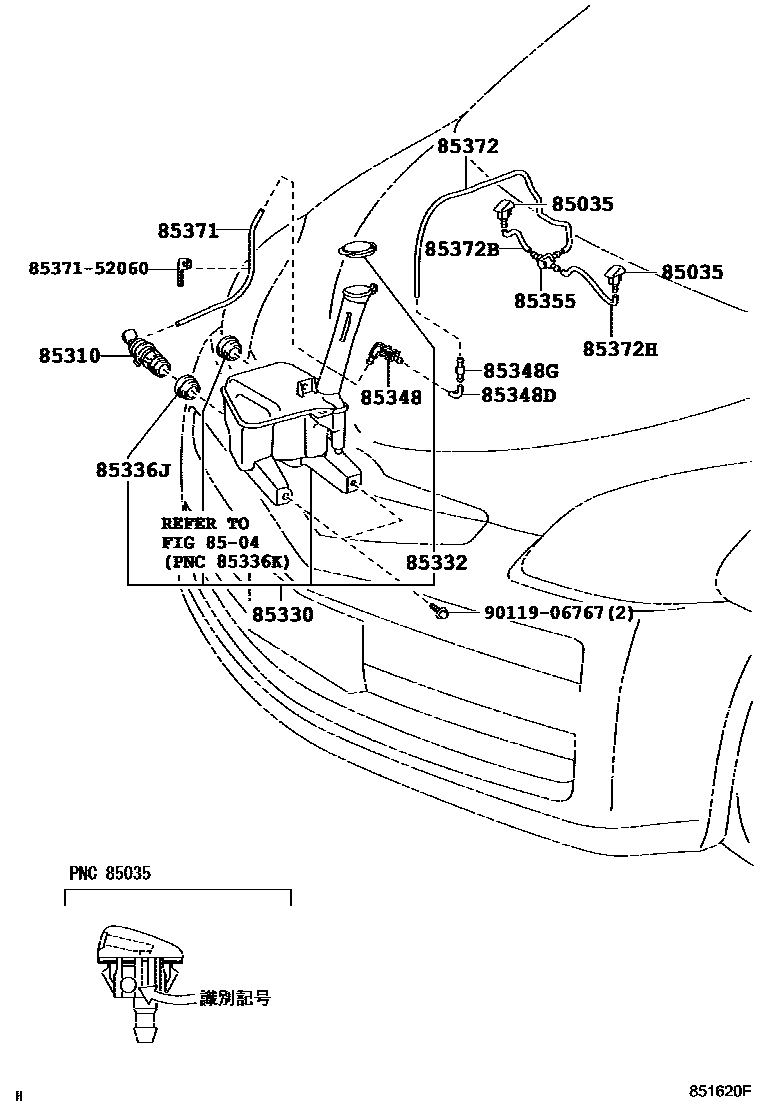

16 parts on this diagram · 1 diagram in section
