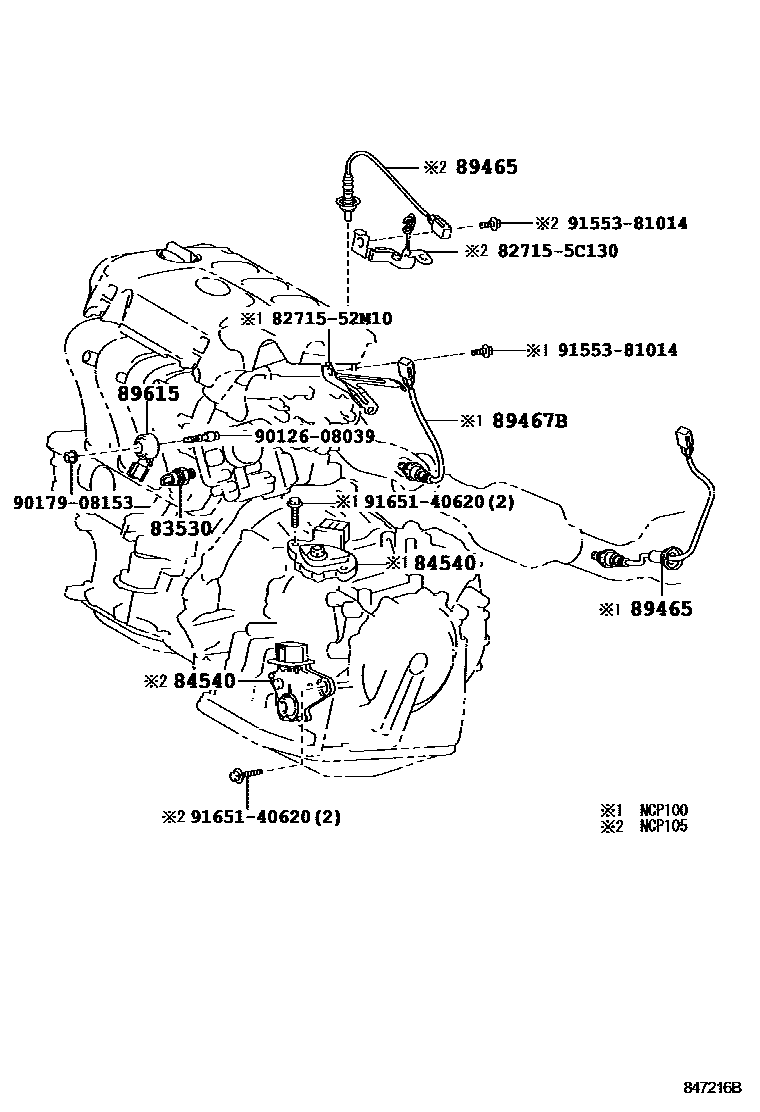

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCP10#,SCP100200509-200712

main83530-60020iNCP10#,SCP100200712

84540SWITCH ASSY, NEUTRAL START

main84540-46010iNCP105200509-200712

main84540-52070iNCP100,SCP100200509-200712

89465SENSOR, OXYGEN

main89465-52250iSCP100200509-200712

main89465-52390iNCP105200509-200712

main89465-52400iNCP100200712

89467BSENSOR, AIR FUEL RATIO

main89467-12180iNCP100200907

main89467-52010iNCP100200509-200712

89615SENSOR, KNOCK CONTROL

main89615-20090iNCP10#,SCP100200712

8271552M10BRACKET,WIRING HARNESS CLAMP

main82715-52M10

827155C130BRACKET,WIRING HARNESS CLAMP

main82715-5C130

9012608039

main90126-08039

9017908153

main90179-08153

9155381014

main91553-81014

9165140620

main91651-40620

11 parts on this diagram · 8 diagrams in section
