Toyota RACTIS — STARTER

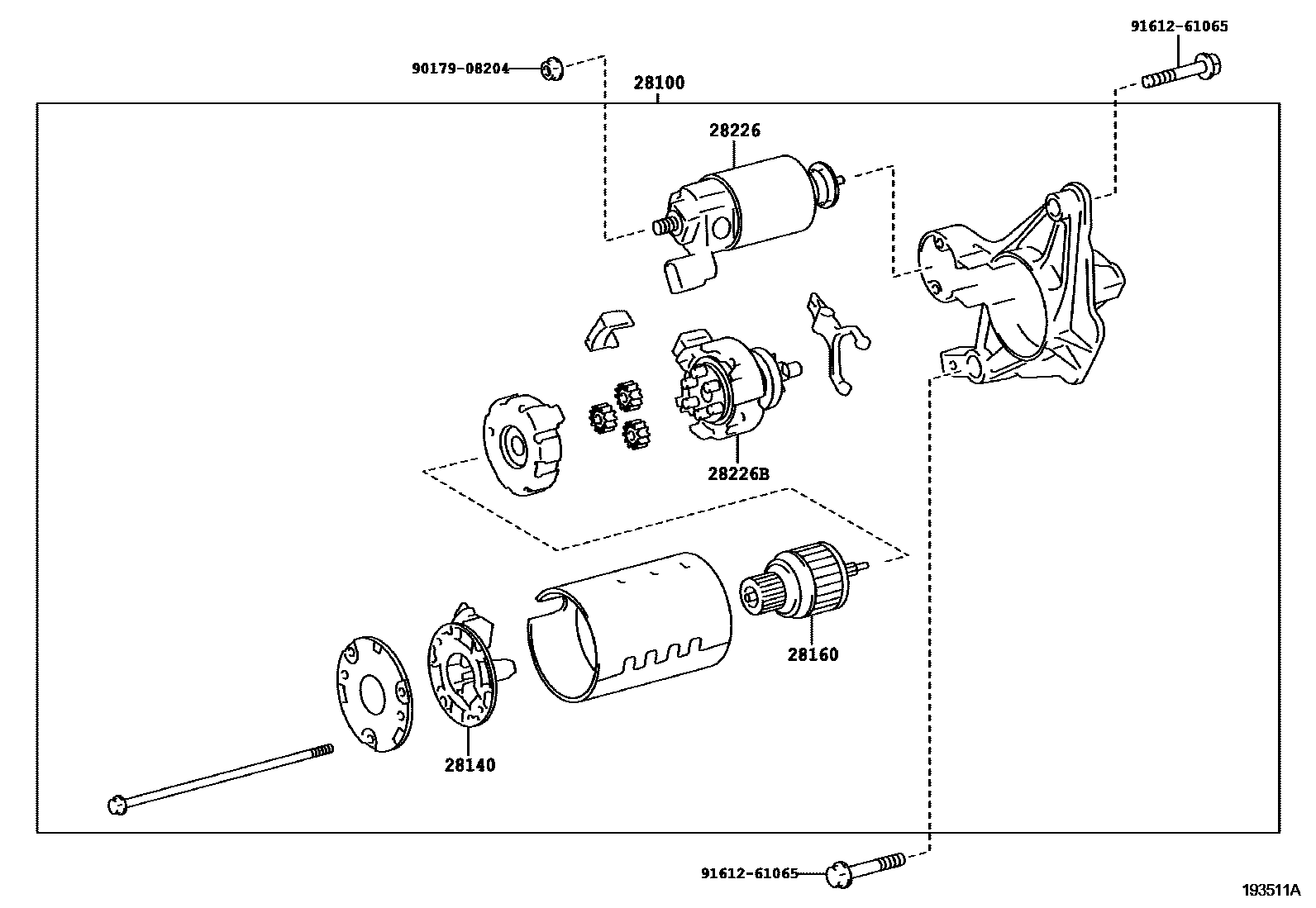

Parts diagram

28100STARTER ASSY

main28100-21021i201208-201405

main28100-21070i201011-201405

main28100-47170i201011-201407

main28100-47171i201408

28140HOLDER ASSY, STARTER BRUSH

main28140-21070i201011-201405

main28140-70020i201208-201405

28160ARMATURE ASSY, STARTER

main28160-21070i201011-201607

main28160-70021i201208-201405

28226STARTER KIT, BATTERY TERMINAL

main28226-21080i201011-201409

main28226-21081i201409

28226BSTARTER KIT, REPAIR SERVICE

main28226-21070i201011-201607

main28226-47170i201011-201607

9017908204

main90179-08204

9161261065

main91612-61065

7 parts on this diagram · 8 diagrams in section

STARTER for Toyota RACTIS

This section contains 31 genuine Toyota parts for the STARTER system of the Toyota RACTIS. Key components include: CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, PIN, STARTER DRIVE LEVER SET, SEAL, RUBBER.
