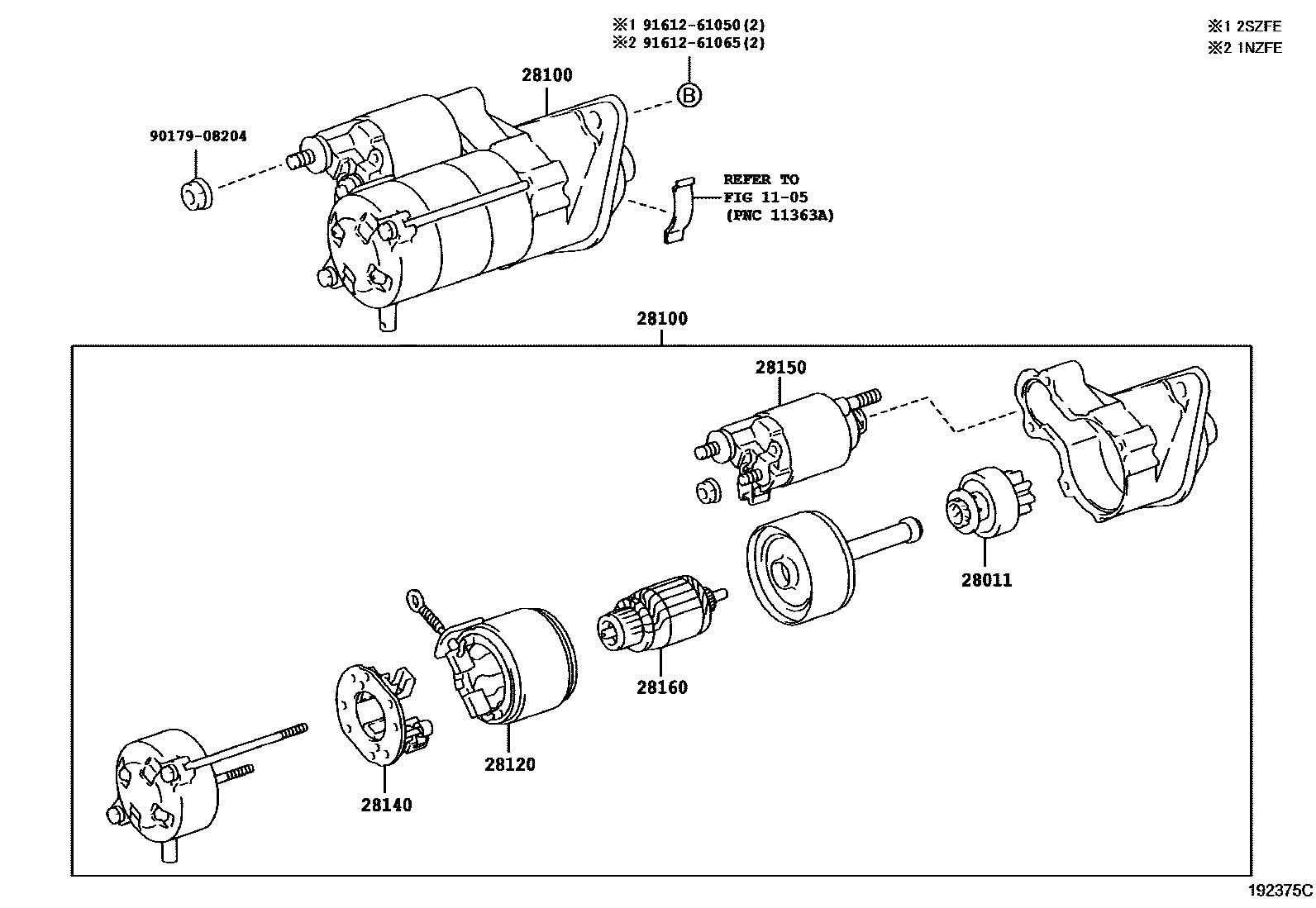

Toyota RACTIS — STARTER

1105

28011CLUTCH SUB-ASSY, STARTER

main28011-23030i2SZFE..SCP100200509-200712

main28011-70020i1NZFE..NCP10#200509-200712

28100STARTER ASSY

main28100-21030supersedes 28100-21021i1NZFE..NCP10#200509-200712

main28100-21031supersedes 28100-21021i1NZFE..NCP10#200907-201008

sub28100-21032

main28100-23030supersedes 28100-23061i2SZFE..SCP100200712-200906

main28100-23031supersedes 28100-23061i2SZFE..SCP100200907-201008

28120YOKE ASSY, STARTER

main28120-40130supersedes 28120-70020i1NZFE,2SZFE..NCP10#,SCP100200907

main28120-70050supersedes 28120-70020i1NZFE,2SZFE..NCP10#,SCP100200509-200712

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i1NZFE,2SZFE..NCP10#,SCP100200712

28150SWITCH ASSY, MAGNET STARTER

main28150-16160i1NZFE,2SZFE..NCP10#,SCP100200509-200705

main28150-21020i1NZFE,2SZFE..NCP10#,SCP100200706-200712

28160ARMATURE ASSY, STARTER

main28160-70050supersedes 28160-70021i1NZFE,2SZFE..NCP10#,SCP100200712

9017908204

main90179-08204

9161261050

main91612-61050

9161261065

main91612-61065

10 parts on this diagram · 1 diagram in section
