Toyota RACTIS — STANDARD TOOL

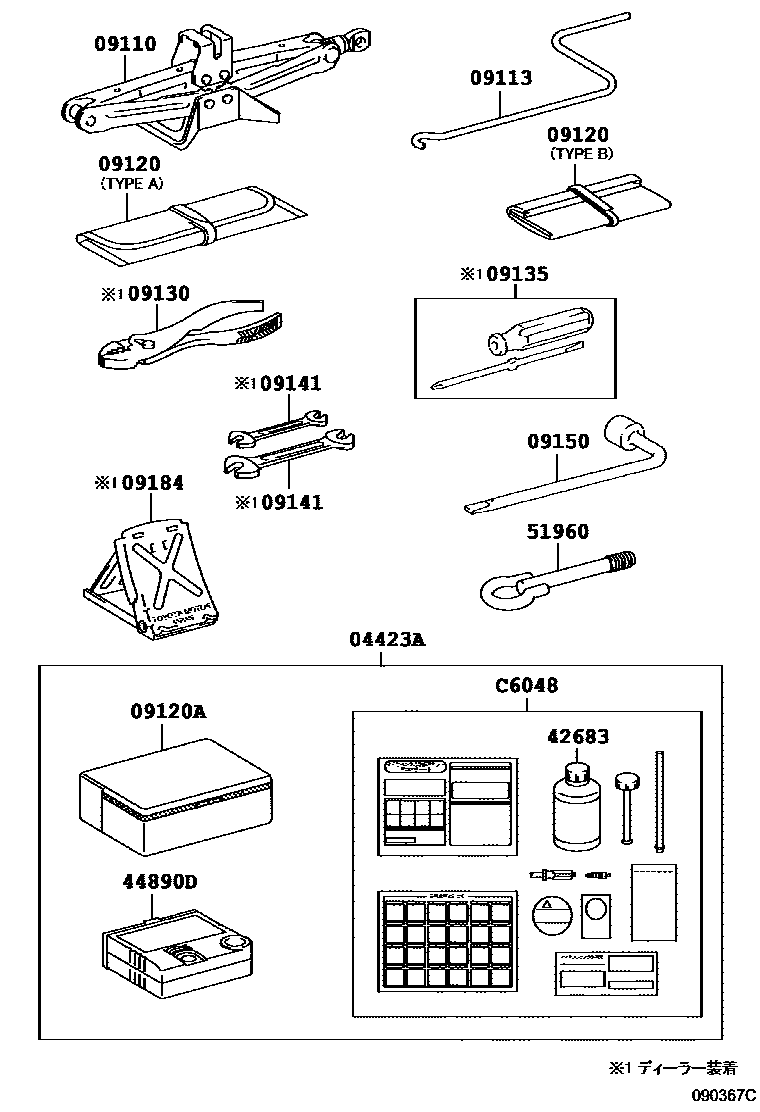

Parts diagram

04423AFITTING KIT, TIRE PRESSURE MONITOR VALVE

09110JACK ASSY

main09111-47010i200509-200712

09113HANDLE, JACK

main09113-52010i200509-200604

main09113-52040i200604-200712

09120BAG, TOOL

main09120-52020

main09120-16030

main09120-52030

main09120-52060

09120ACASE, TOOL

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-40010i200509-200712

09184STOPPER, WHEEL

main09184-00010

42683SEAL, TIRE REPAIR

main42683-52010

44890DCOMPRESSOR ASSY, AIR

51960HOOK ASSY, FRONT

main51960-47020i200509-200712

C6048REPAIR SET, TIRE

mainC6048-52010

14 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota RACTIS

This section contains 14 genuine Toyota parts for the STANDARD TOOL system of the Toyota RACTIS. Key components include: FITTING KIT, TIRE PRESSURE MONITOR VALVE, JACK ASSY, HANDLE, JACK, BAG, TOOL, CASE, TOOL.
