Toyota RACTIS — PARTIAL ENGINE ASSEMBLY

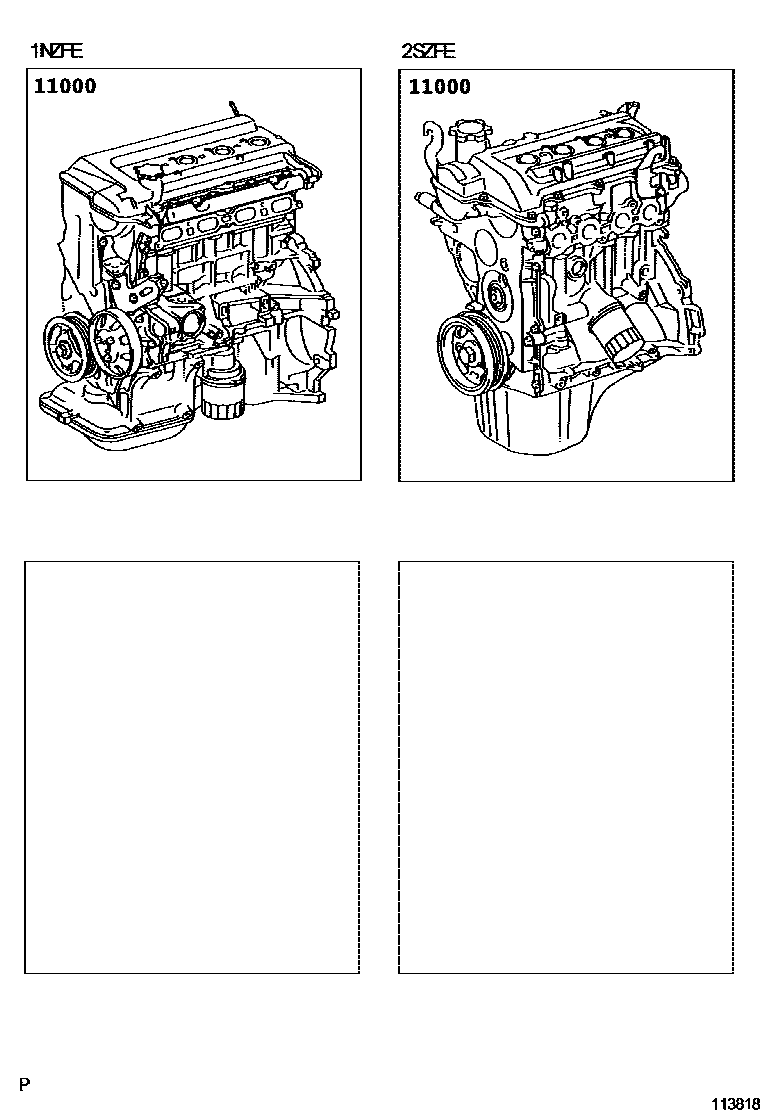

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-21851i200509-200712

main19000-21B51i200509-200712

main19000-23220i200509-200712

1 parts on this diagram · 1 diagram in section
