Toyota RACTIS — NAVIGATION & FRONT MONITOR DISPLAY

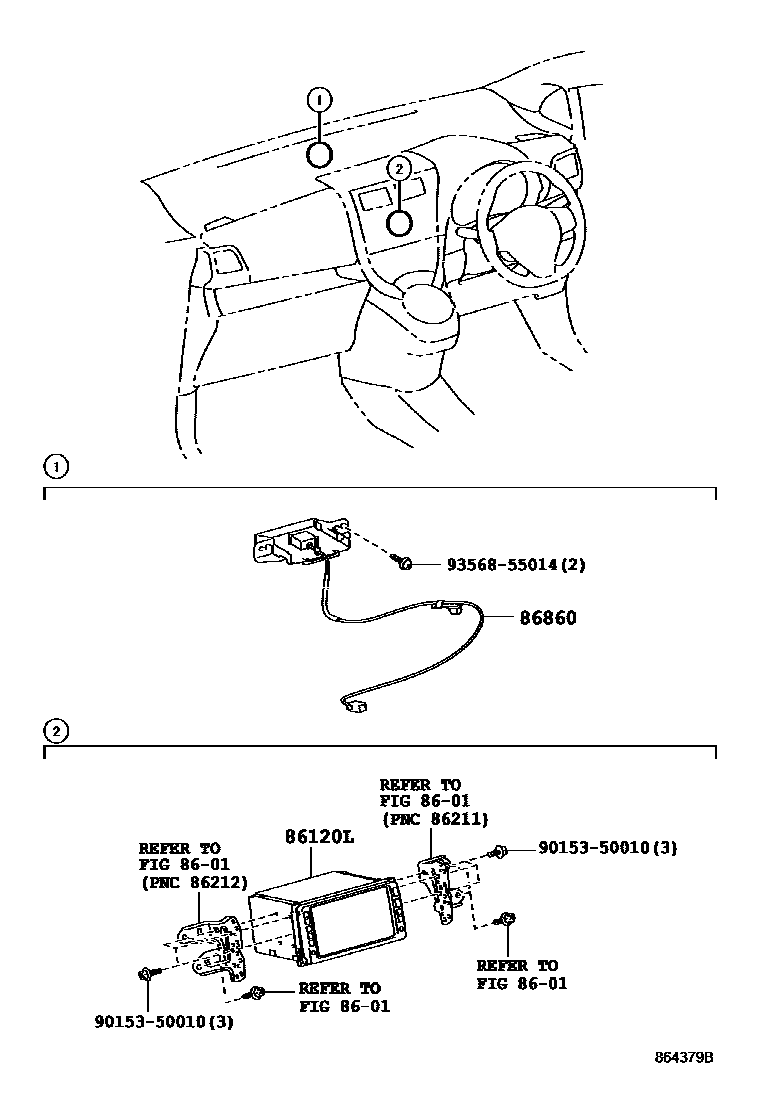

Parts diagram

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main00000-00000i201111-201310

main86100-52050-B0i201011-201108

main86100-52051-B0i201109-201208

main86100-52052-B0i201209-201310

main86100-52053-B0i201310-201405

main86100-52140-B1i201011-201109

main86100-52142-B1i201209-201307

main86100-52143-B1i201310-201405

86860ANTENNA ASSY, NAVIGATION

main86860-52180i201011

9015350010

main90153-50010

9356855014

main93568-55014

5 parts on this diagram · 1 diagram in section

NAVIGATION & FRONT MONITOR DISPLAY for Toyota RACTIS

This section contains 5 genuine Toyota parts for the NAVIGATION & FRONT MONITOR DISPLAY system of the Toyota RACTIS. Key components include: RADIO RECEIVER & AMPLIFIER & CONDENSER, RECEIVER ASSY, NAVIGATION, ANTENNA ASSY, NAVIGATION.
