Toyota RACTIS — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
SUPER RED 5,3P0
BORDEAUX MC.,3P3
BRONZE M.M.,4T3
DK. BROWN M.M.,4U3
TURQUOISE ME.,777
LT.BLUE M.M.,8S7
SATIN BLUE M.M.,8V9
DEEP AMETHYST M.M.,9AH
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
SUPER RED 5,3P0
BORDEAUX MC.,3P3
BRONZE M.M.,4T3
DK. BROWN M.M.,4U3
TURQUOISE ME.,777
LT.BLUE M.M.,8S7
SATIN BLUE M.M.,8V9
DEEP AMETHYST M.M.,9AH
87946RETRACTOR, OUTER MIRROR, RH
87948COVER, OUTER MIRROR HOLE, LH
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
9016360024
main90163-60024

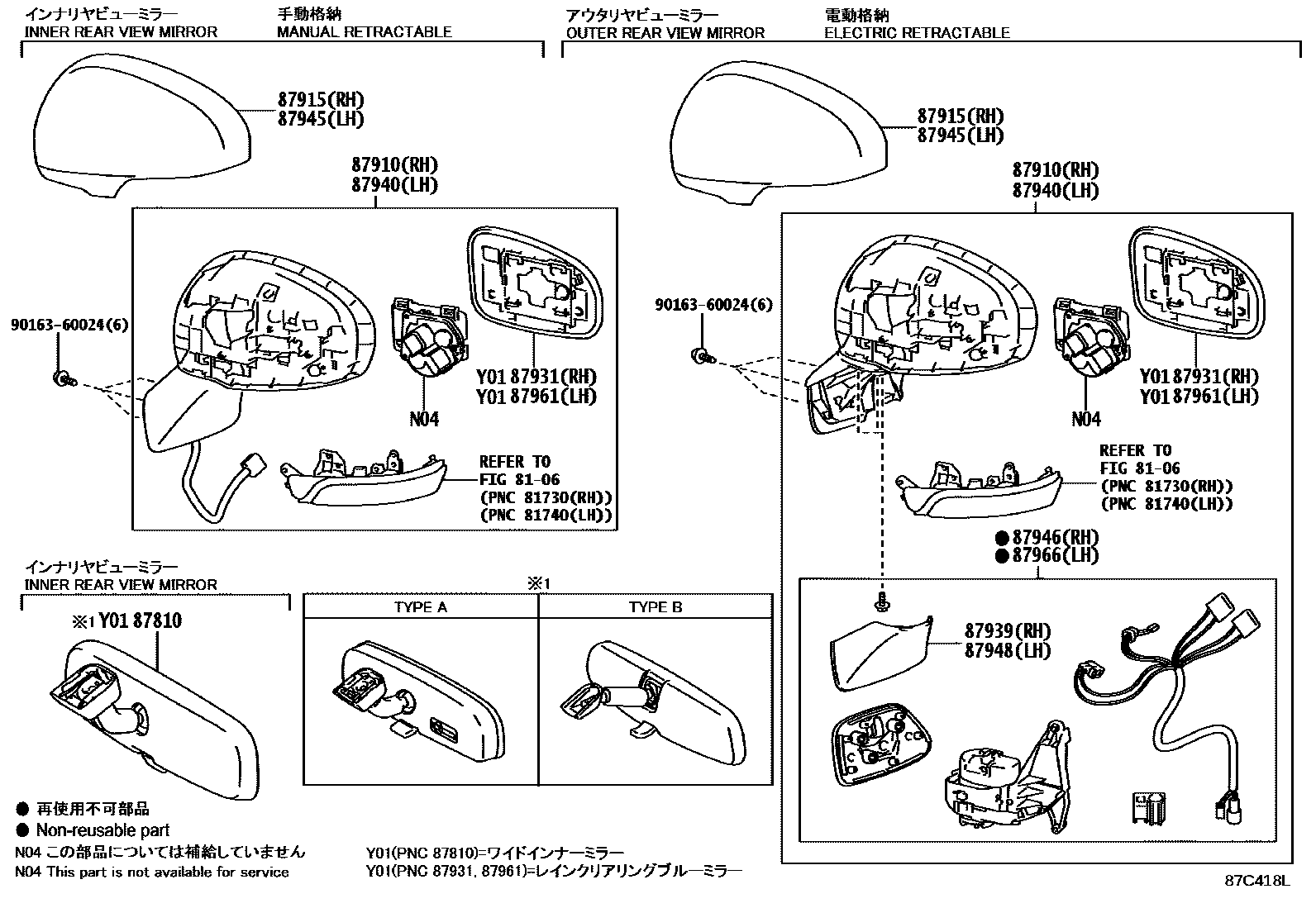

13 parts on this diagram · 1 diagram in section
