Toyota RACTIS — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915ACOVER, OUTER MIRROR, RH
WHITE PEARL CS.,064
WHITE,068
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER M.M.,1E7
GRAY ME.,1G2
BLACK MC.,209
SUPER RED 5,3P0
RED M.M.,3R3
LT.GREEN ME.,6U5
BLUE ME.,8T4
BLUE ME.,8T7
DEEP AMETHYST M.M.,9AH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945BCOVER, OUTER MIRROR, LH
WHITE PEARL CS.,064
WHITE,068
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER M.M.,1E7
GRAY ME.,1G2
BLACK MC.,209
SUPER RED 5,3P0
RED M.M.,3R3
LT.GREEN ME.,6U5
BLUE ME.,8T4
BLUE ME.,8T7
DEEP AMETHYST M.M.,9AH
87946RETRACTOR, OUTER MIRROR, RH
87966RETRACTOR, OUTER MIRROR, LH
9016360024
main90163-60024

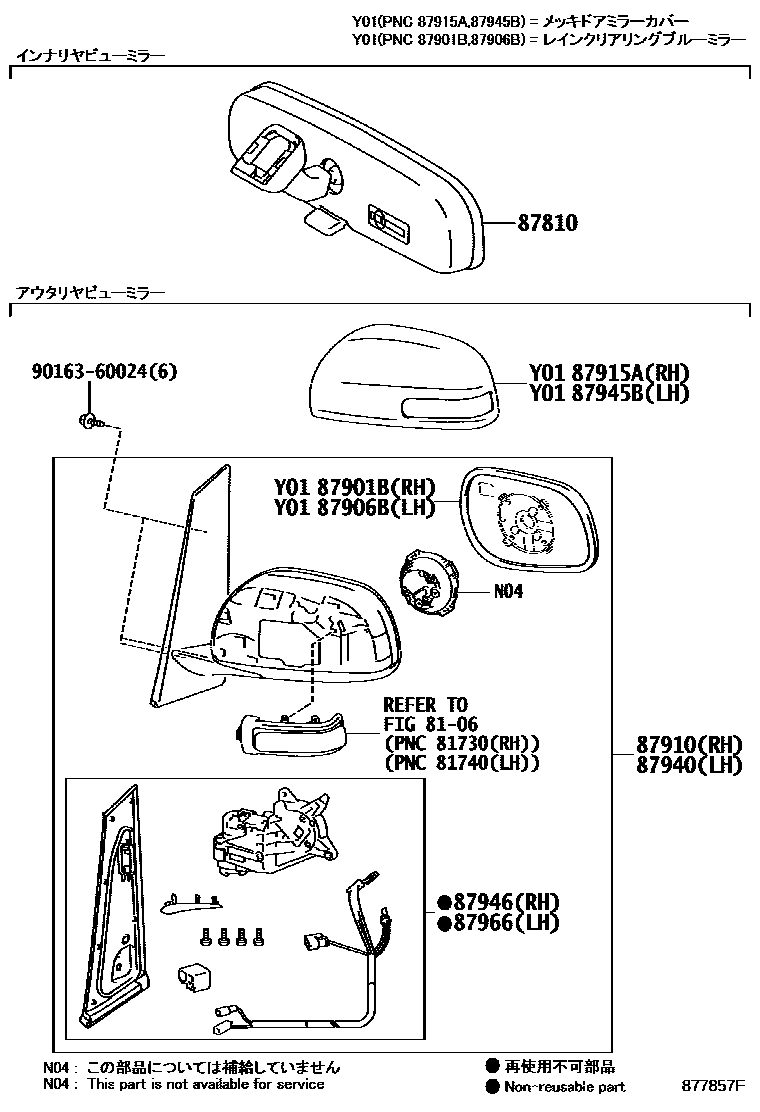

11 parts on this diagram · 1 diagram in section
MIRROR for Toyota RACTIS
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota RACTIS. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH.
