Toyota RACTIS — METER

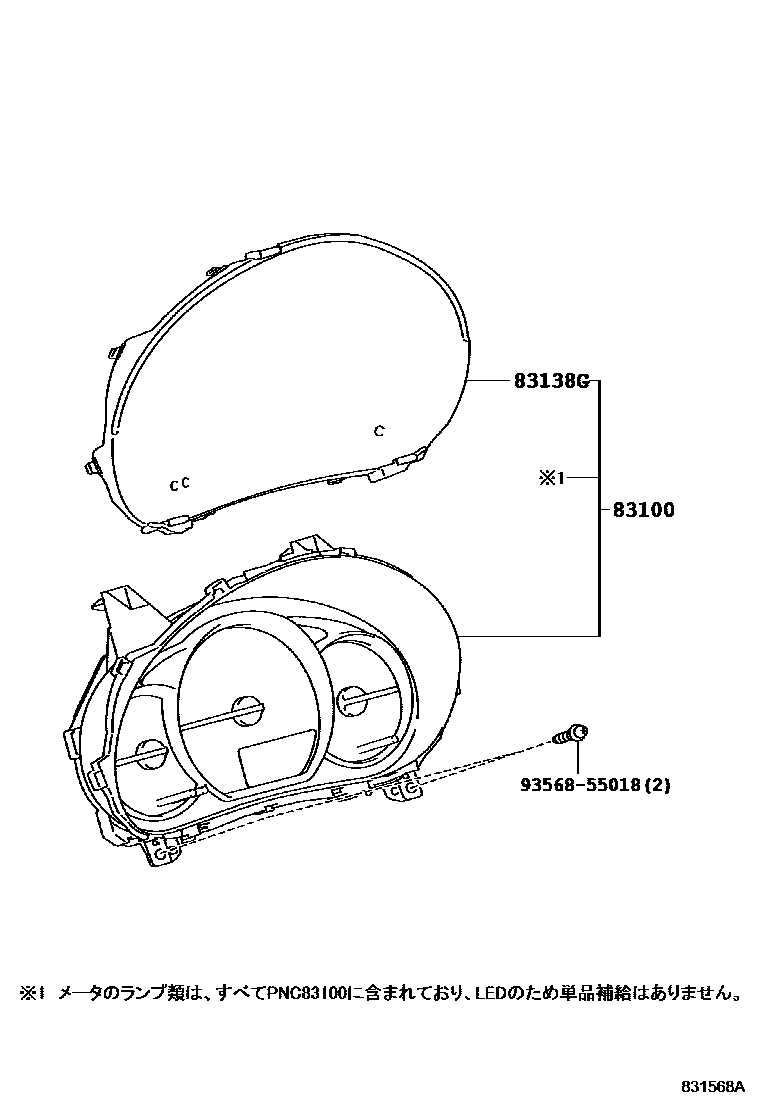

Parts diagram

83100METER ASSY, COMBINATION

main83800-52M30i201011-201107

main83800-52M31i201107-201111

main83800-52M50i201011-201108

main83800-52M50i201011-201108

main83800-52M51i201108-201111

main83800-52M51i201108-201111

main83800-52M60i201011-201107

main83800-52M61i201107-201111

main83800-5CC60i201011-201107

main83800-5CC61i201107-201111

main83800-5CE00i201405

main83800-5CE10i201405

main83800-5CE20i201405-201507

main83800-5CK00i201111-201208

main83800-5CK00i201111-201208

main83800-5CK10i201111-201208

main83800-5CK20i201111-201208

main83800-5CL00i201111-201208

main83800-5CL20i201507

main83800-5CM70i201208-201310

main83800-5CM70i201208-201310

main83800-5CM80i201208-201310

main83800-5CM90i201208-201405

main83800-5CN00i201208-201405

main83800-5CQ40i201310-201405

83138GGLASS, COMBINATION METER

main83852-52M50i201011-201405

9356855018

main93568-55018

3 parts on this diagram · 2 diagrams in section

METER for Toyota RACTIS

This section contains 3 genuine Toyota parts for the METER system of the Toyota RACTIS. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
