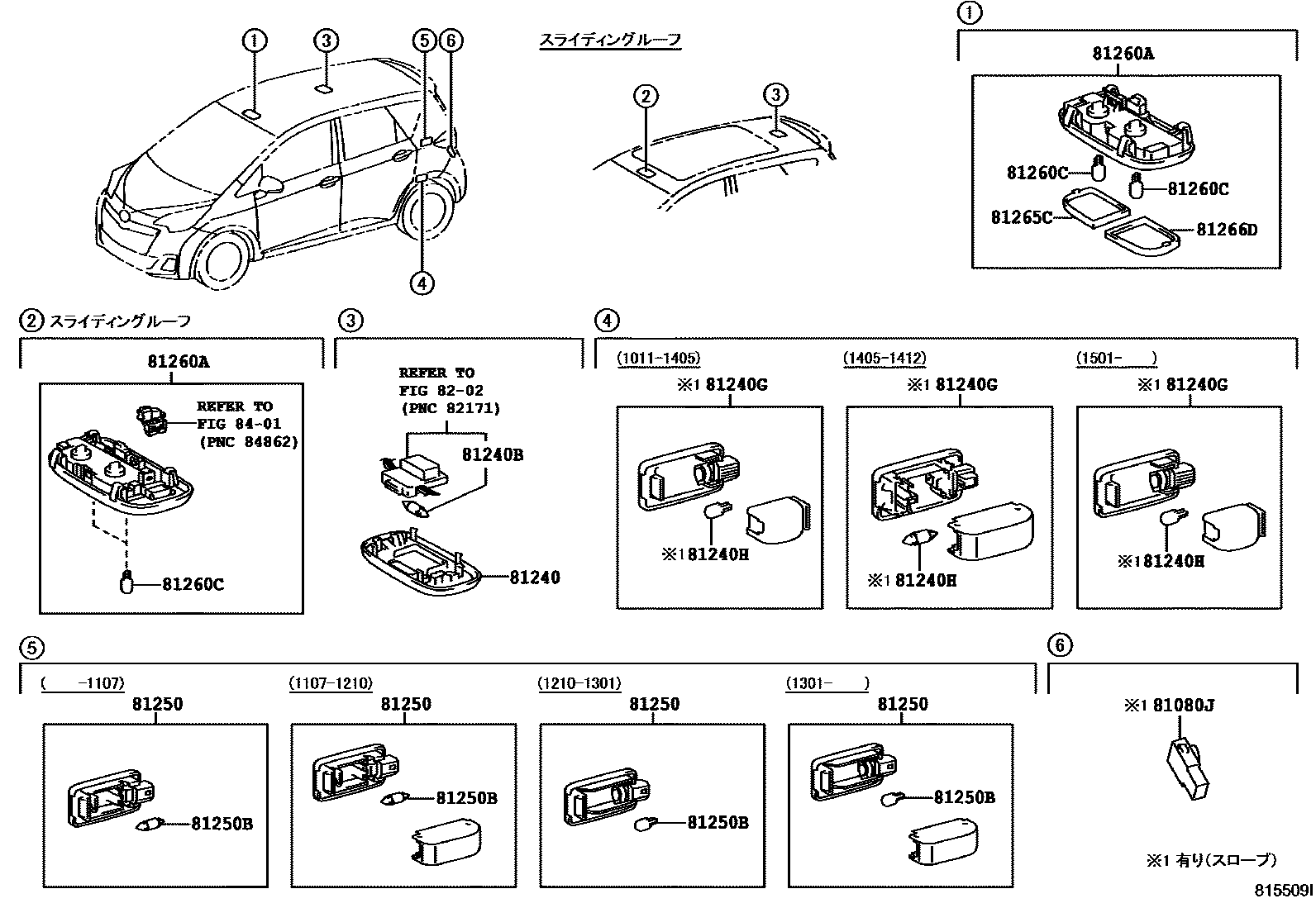

Toyota RACTIS — INTERIOR LAMP
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81240LAMP ASSY, ROOM, NO.1
main81240-35020-B0iNCP120..LEPIC,X;NCP125,NSP120..LEPIC; NCP120..S; NCP125,NSP120..X; NSP122;NCP12#,NSP120..G201011-201405
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM2#,4#,8#; LT.GRAY,TRIM2#,8#
81240BBULB, ROOM LAMP, NO.1
81240GLAMP ASSY, ROOM, NO.3(FOR SLOPE LIGHTING)
81240HBULB, ROOM LAMP NO.3(FOR SLOPE LIGHTING)
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
81260ALAMP ASSY, MAP
main81260-52030-B1iNCP120..LEPIC,X;NCP125,NSP120..LEPIC; NCP120..S; NCP125,NSP120..X; NSP122;NCP12#,NSP120..G201011-201405
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,4#; LT.GRAY,TRIM2#,4#,8#; LT.GRAY,TRIM2#,8#
81260CBULB(FOR MAP LAMP)
81265CLENS, MAP LAMP, NO.1
81266DLENS, MAP LAMP, NO.2
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
13 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota RACTIS
This section contains 13 genuine Toyota parts for the INTERIOR LAMP system of the Toyota RACTIS. Key components include: LAMP ASSY, INTERIOR ILLUMINATION, NO.1, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.3(FOR SLOPE LIGHTING), BULB, ROOM LAMP NO.3(FOR SLOPE LIGHTING).
