Toyota RACTIS — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01243×4i201011-201405

main90919-01253×4i201011-201311

main90919-01275×4i201311-201405

main90919-01280×4i201405

19500COIL ASSY, IGNITION

main90919-02257×4i201011-201405

main90919-02260×4i201011-201405

9155180625

main91551-80625

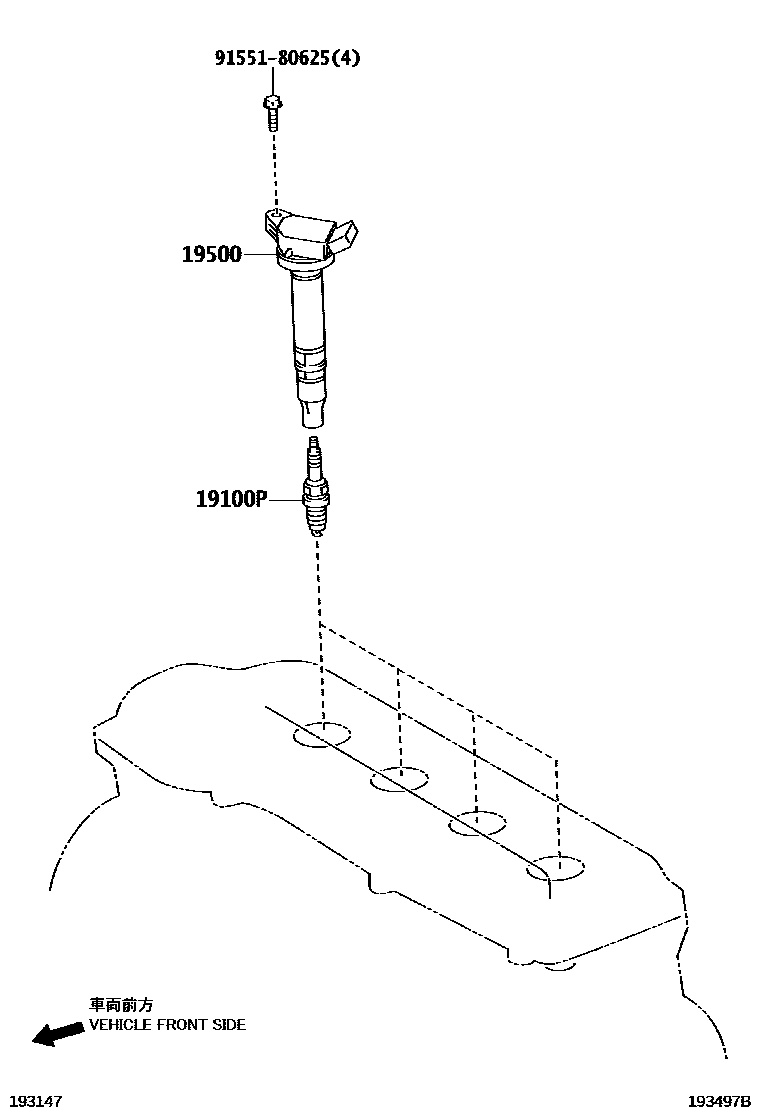

3 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota RACTIS

This section contains 3 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota RACTIS. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
