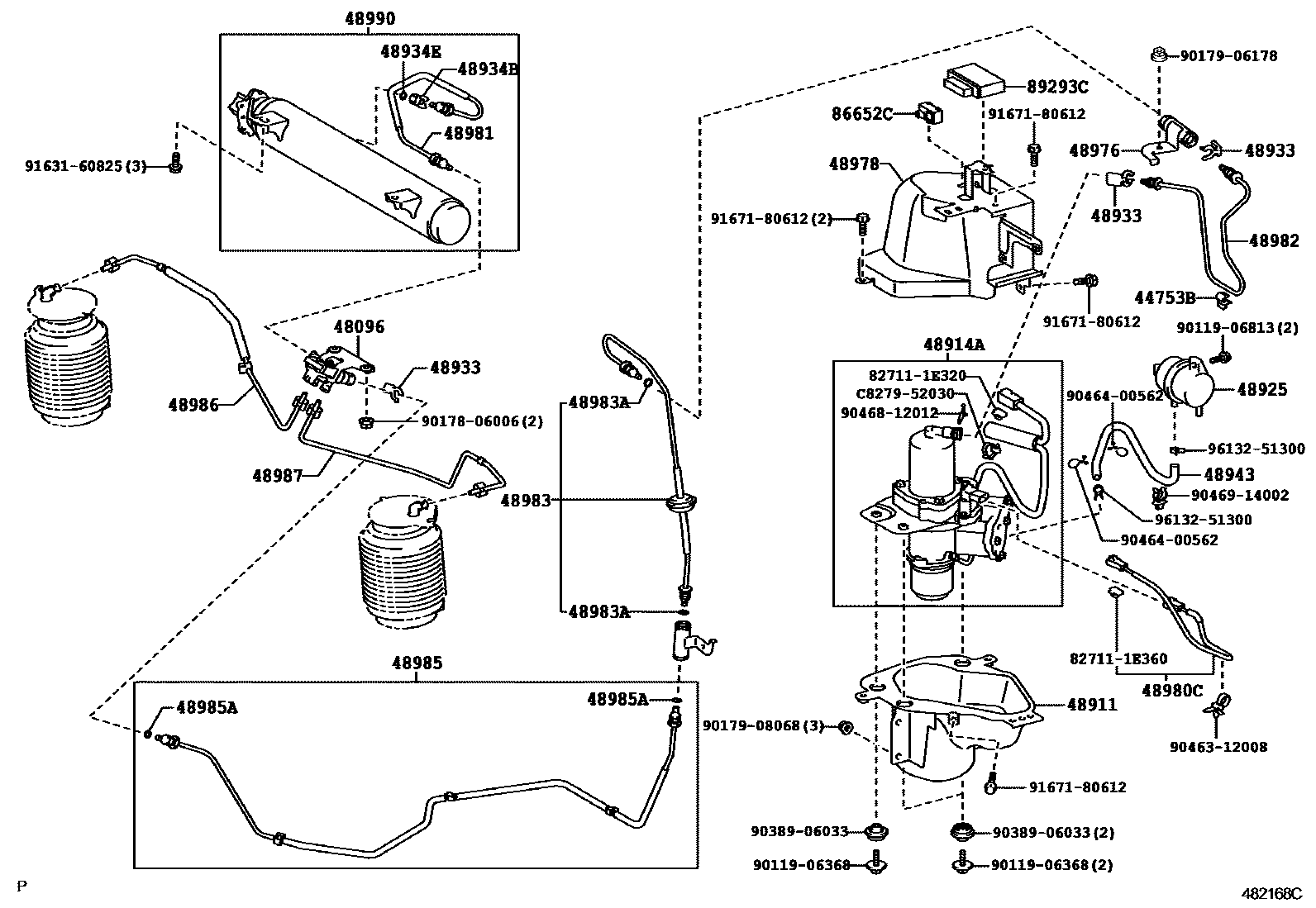

Toyota RACTIS — HEIGHT CONTROL (AUTO-LEVELER)
44753BCLAMP, HEIGHT CONTROL TUBE, NO.1
48096VALVE SUB-ASSY, HEIGHT CONTROL, NO.2
48911BRACKET, HEIGHT CONTROL COMPRESSOR
48914ACOMPRESSOR, HEIGHT CONTROL, NO.1
48925FILTER, HEIGHT CONTROL
48933HOLDER, AIR CONNECTOR CLIP
48934BCONNECTOR, HEIGHT CONTROL TUBE
48934ERING, O(FOR HEIGHT CONTROL TUBE CONNECTOR)
48943HOSE, HEIGHT CONTROL, NO.1
48976WAY, HEIGHT CONTROL
48978COVER, HEIGHT CONTROL COMPRESSOR
48980CHARNESS ASSY, HEIGHT CONTROL VALVE
48981TUBE, HEIGHT CONTROL, NO.1
48982TUBE, HEIGHT CONTROL, NO.2
48983TUBE, HEIGHT CONTROL, NO.3
48983ARING, O(FOR HEIGHT CONTROL TUBE NO.3)
48985TUBE, HEIGHT CONTROL, NO.5
48985ARING, O(FOR HEIGHT CONTROL TUBE NO.5)
48986TUBE, HEIGHT CONTROL, NO.6
48987TUBE, HEIGHT CONTROL, NO.7
48990TANK ASSY, PNEUMATIC W/TUBE
86652CBUZZER, REAR AIR SUSPENSION WARNING
89293CCOMPUTER, SUSPENSION CONTROL
827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E320
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9011906368
main90119-06368
9011906813
main90119-06813
9017806006
main90178-06006
9017906178
main90179-06178
9017908068
main90179-08068
9038906033
main90389-06033
9046312008
main90463-12008
9046400562
main90464-00562
9046812012
main90468-12012
9046914002
main90469-14002
9163160825
main91631-60825
9167180612
main91671-80612
9613251300
main96132-51300
C827952030
mainC8279-52030
39 parts on this diagram · 1 diagram in section
HEIGHT CONTROL (AUTO-LEVELER) for Toyota RACTIS
This section contains 39 genuine Toyota parts for the HEIGHT CONTROL (AUTO-LEVELER) system of the Toyota RACTIS. Key components include: CLAMP, HEIGHT CONTROL TUBE, NO.1, VALVE SUB-ASSY, HEIGHT CONTROL, NO.2, BRACKET, HEIGHT CONTROL COMPRESSOR, COMPRESSOR, HEIGHT CONTROL, NO.1, FILTER, HEIGHT CONTROL.
