Toyota RACTIS — FRONT STEERING GEAR & LINK

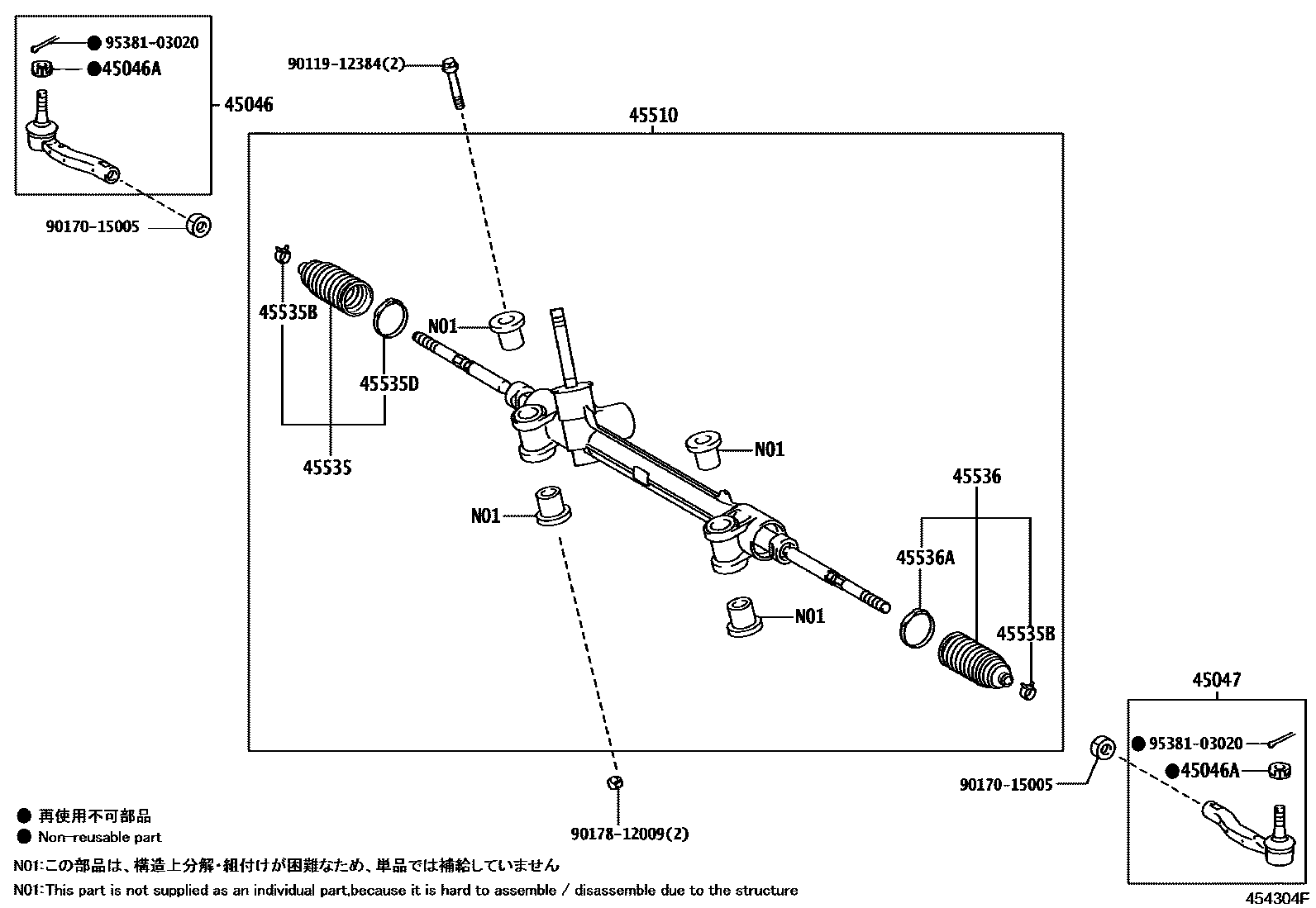

Parts diagram

45046END SUB-ASSY, TIE ROD, RH

main45046-59175i200509-200712

main45046-59205i200712

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2i200509-200712

45047END SUB-ASSY, TIE ROD, LH

main45047-59115i200509-200712

main45047-59145i200712

45510GEAR ASSY, STEERING

main45510-52170i200509-200712

main45510-52171i201001

main45510-52180i200509-200712

main45510-52181i201001

45535BOOT, STEERING RACK, NO.1

main45535-59015i200509-200712

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2i200509-200712

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010i200509-200712

45536BOOT, STEERING RACK, NO.2

main45535-59015i200509-200712

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010i200509-200712

9011912384

main90119-12384

9017015005

main90170-15005

9017812009

main90178-12009

9538103020

main95381-03020

13 parts on this diagram · 1 diagram in section

FRONT STEERING GEAR & LINK for Toyota RACTIS

This section contains 13 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota RACTIS. Key components include: END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, GEAR ASSY, STEERING, BOOT, STEERING RACK, NO.1.
