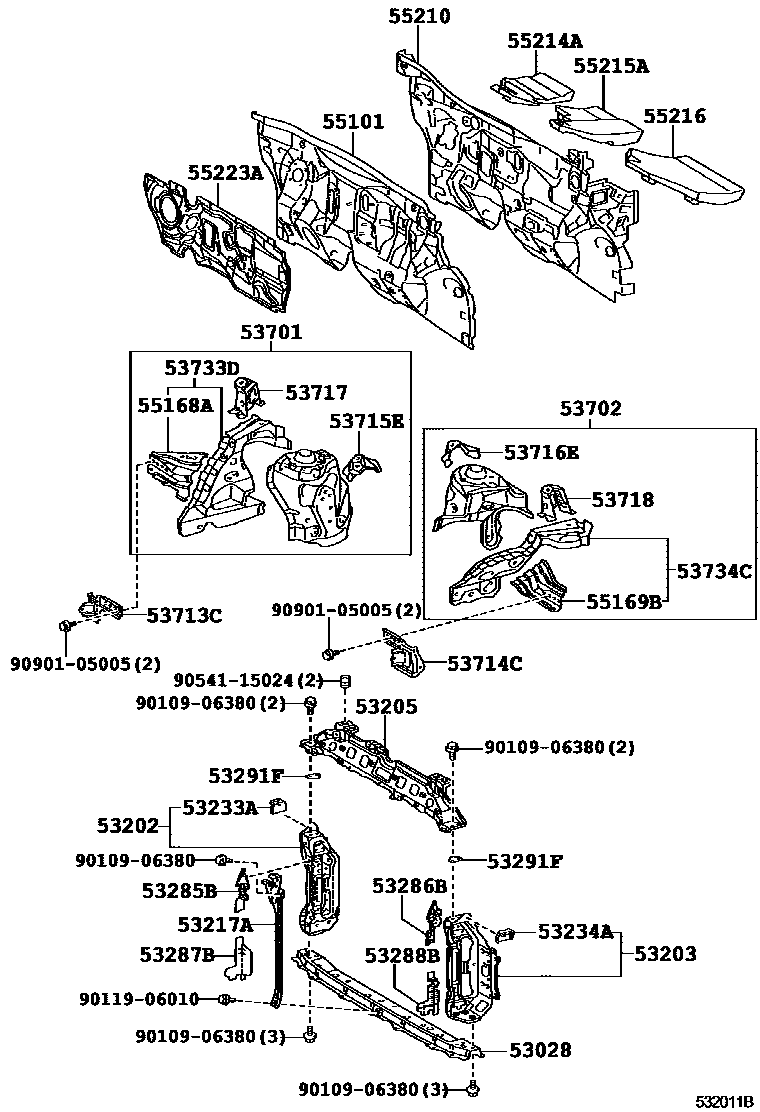

Toyota RACTIS — FRONT FENDER APRON & DASH PANEL
53028SUPPORT SUB-ASSY, RADIATOR, LOWER
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53217ABRACE, HOOD LOCK SUPPORT
53233ABRACKET, HEADLAMP, NO.1 RH
53234ABRACKET, HEADLAMP, NO.1 LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53291FPLATE, RADIATOR SUPPORT
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
55101PANEL SUB-ASSY, DASH
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55210INSULATOR ASSY, DASH PANEL
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55216PAD, DASH PANEL INSULATOR, NO.4
9010906380
main90109-06380
9011906010
main90119-06010
9054115024
main90541-15024
9090105005
main90901-05005
34 parts on this diagram · 1 diagram in section
