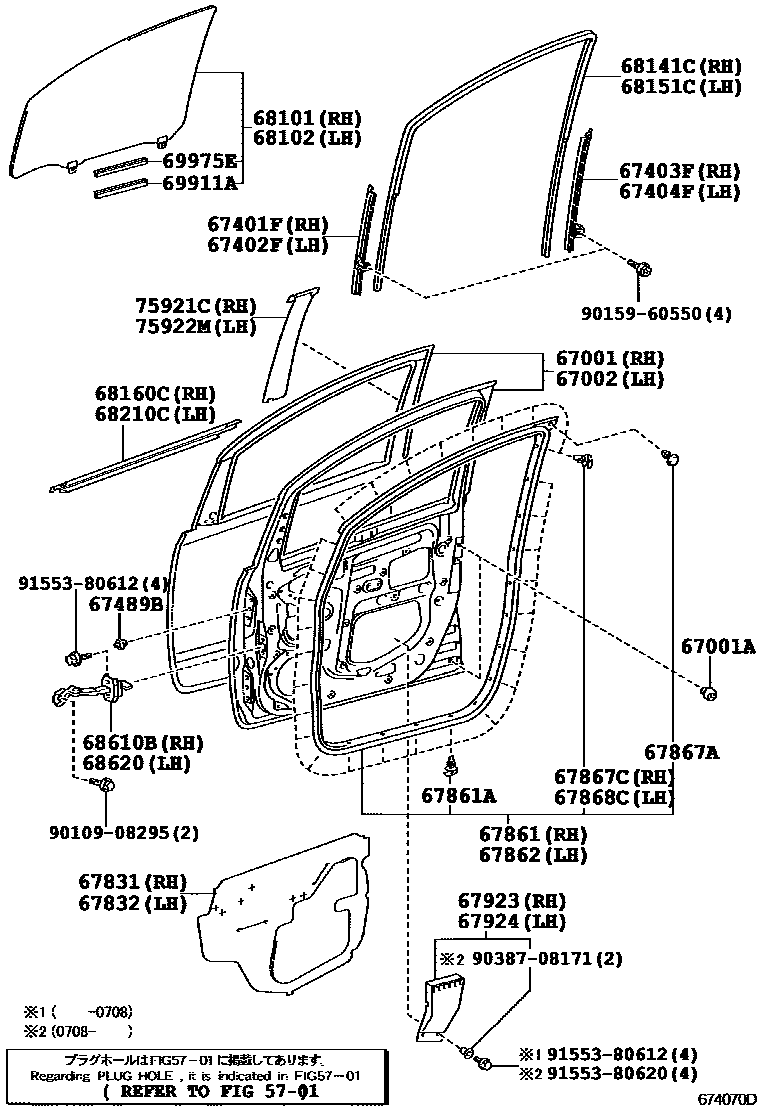

Toyota RACTIS — FRONT DOOR PANEL & GLASS

5701HOLE PLUG

→ Go to FIG 57-01

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-52390i200712-201008

67001ACUSHION, FRONT DOOR PANEL

main90541-09117×4i200509-200511

main90541-09137×4i200512-200712

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-52390i200509-200712

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-52100i200509-200712

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-52090i200509-200712

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-52180i200509-200712

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-52150i200509-200712

67489BPACKING, FRONT DOOR LOWER COVER

main67489-52020×2i200509-200712

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-52320i200509-200712

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-52200i200509-200712

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-52180i200509-200712

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-12150×44i200509-200712

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-52170i200509-200712

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main90467-06084×2i200509-200712

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-52010×9i200509-200712

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-52040×9i200509-200712

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-52140i200509-200707

main67923-52141i200708-200712

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-52150i200509-200707

main67924-52151i200708-200712

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-52260i200509-200712

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-52260i200509-200712

68141CRUN, FRONT DOOR GLASS, RH

main68141-52160i200509-200712

68151CRUN, FRONT DOOR GLASS, LH

main68151-52160i200509-200712

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-52140i200509-200712

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-52140i200509-200712

68610BCHECK ASSY, FRONT DOOR, RH

main68610-52090i200509-200712

main68610-52091i201005

68620CHECK ASSY, FRONT DOOR, LH

main68620-52090i200509-200712

main68620-52091i201005

69911ACHANNEL, FRONT DOOR GLASS, NO.1

main69911-20050×2i200509-200712

69975EFILLER, FRONT DOOR GLASS CHANNEL, NO.1

main69975-16020×2i200509-200712

75921CTAPE, BLACK OUT, NO.1 RH

main75921-52080i200509-200712

75922MTAPE, BLACK OUT, NO.1 LH

main75922-52080i200509-200712

9010908295

main90109-08295

9015960550

main90159-60550

9038708171

main90387-08171

9155380612

main91553-80612

9155380620

main91553-80620

36 parts on this diagram · 2 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota RACTIS

This section contains 50 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota RACTIS. Key components include: HOLE PLUG, PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH, FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH.
