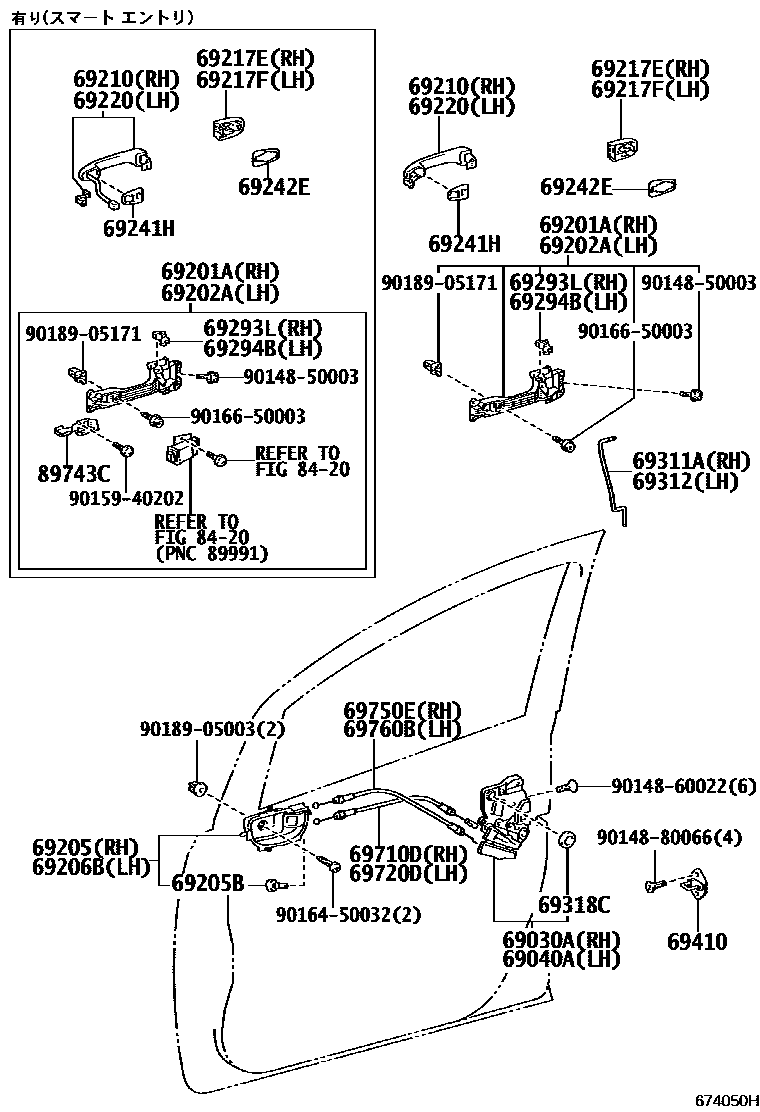

Toyota RACTIS — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.GRAY,TRIM10,11,4#
DK.GRAY,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.GRAY,TRIM10,11,4#
DK.GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,064
WHITE,068
BLACK MC.,209
LT.GREEN ME.,6U5
SILVER M.M.,1E7
GRAY ME.,1G2
SUPER RED 5,3P0
WHITE PEARL CS.,064
WHITE,068
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER M.M.,1E7
GRAY ME.,1G2
BLACK MC.,209
SUPER RED 5,3P0
RED M.M.,3R3
LT.GREEN ME.,6U5
BLUE ME.,8T4
BLUE ME.,8T7
DEEP AMETHYST M.M.,9AH
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,070
WHITE PEARL CS.,064
SUPER WHITE 2,040
WHITE,068
BLACK MC.,209
LT.GREEN ME.,6U5
DEEP AMETHYST M.M.,9AH
SILVER M.M.,1E7
GRAY ME.,1G2
BLUE ME.,8T4
BLUE ME.,8T7
SUPER RED 5,3P0
RED M.M.,3R3
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,070
WHITE PEARL CS.,064
SUPER WHITE 2,040
WHITE,068
BLACK MC.,209
LT.GREEN ME.,6U5
DEEP AMETHYST M.M.,9AH
SILVER M.M.,1E7
GRAY ME.,1G2
BLUE ME.,8T4
BLUE ME.,8T7
SUPER RED 5,3P0
RED M.M.,3R3
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,064
WHITE,068
BLACK MC.,209
LT.GREEN ME.,6U5
SILVER M.M.,1E7
GRAY ME.,1G2
SUPER RED 5,3P0
WHITE PEARL CS.,064
WHITE,068
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER M.M.,1E7
GRAY ME.,1G2
BLACK MC.,209
SUPER RED 5,3P0
RED M.M.,3R3
LT.GREEN ME.,6U5
BLUE ME.,8T4
BLUE ME.,8T7
DEEP AMETHYST M.M.,9AH
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
8420WIRELESS DOOR LOCK
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9016450032
main90164-50032
9016650003
main90166-50003
9018905003
main90189-05003
9018905171
main90189-05171
33 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota RACTIS
This section contains 33 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota RACTIS. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
