Toyota RACTIS — FOG LAMP

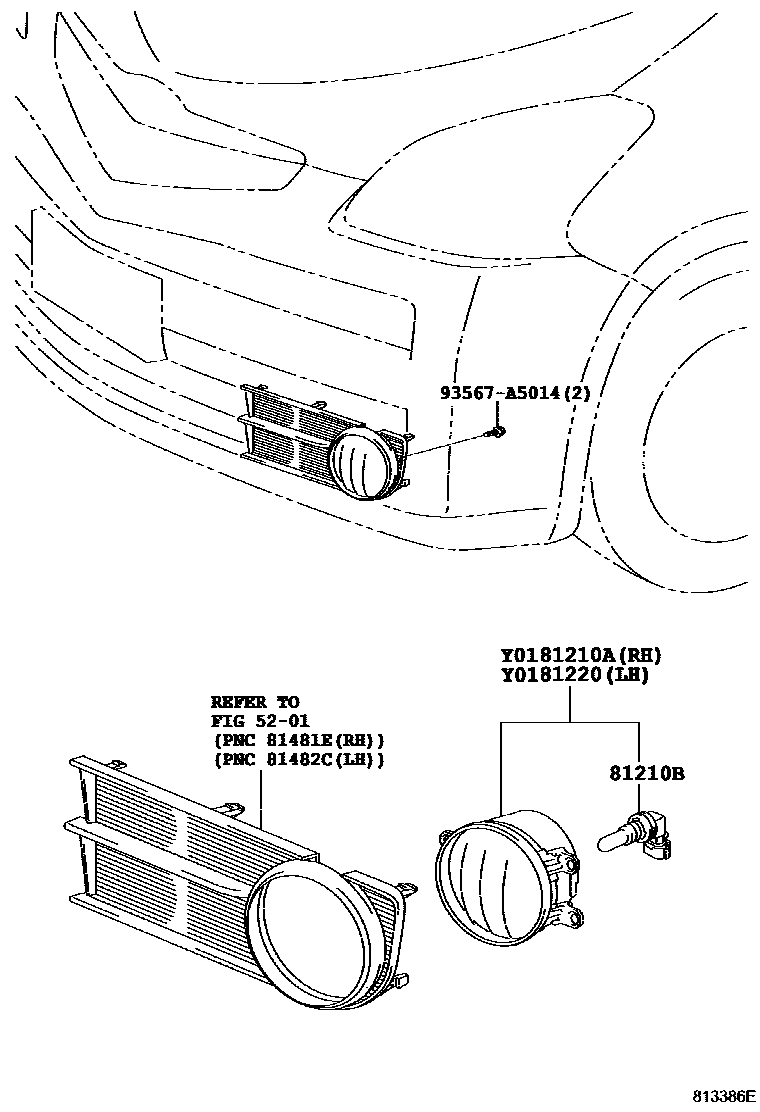

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-0D040i200509-200611

main81210-0D041i200612-200712

81210BBULB, FOG LAMP

main90981-13075×2i200511-200712

main90981-13081×2i200511-200712

main90981-WD011×2i200509-200511

main90981-WD012×2i200509-200511

81220LAMP ASSY, FOG, LH

main81220-0D040i200509-200611

main81220-0D041i200612-200712

93567A5014

main93567-A5014

5 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota RACTIS

This section contains 5 genuine Toyota parts for the FOG LAMP system of the Toyota RACTIS. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP ASSY, FOG, LH.
