Toyota RACTIS — EXHAUST GAS RECIRCULATION SYSTEM

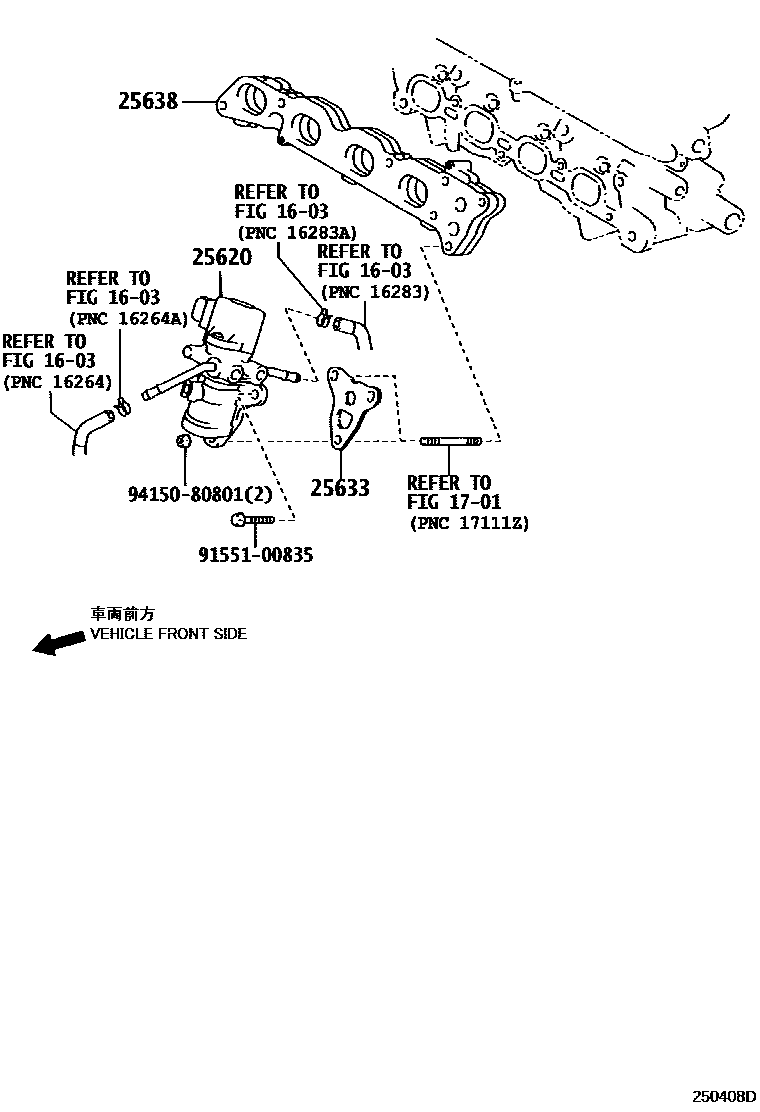

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25620VALVE ASSY, EGR

main25620-21010i201011-201405

main25620-21030i201208-201405

main25620-47020i201011-201405

main25620-47030i201405

25633GASKET, EGR VALVE

main25633-21020i201011-201405

main25633-47010i201011-201405

main25633-47020i201405

25638CHAMBER, EGR DELIVERY

main25638-21020i201011-201405

9155100835

main91551-00835

9415080801

main94150-80801

7 parts on this diagram · 3 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota RACTIS
