Toyota RACTIS — ELECTRONIC HEIGHT CONTROL

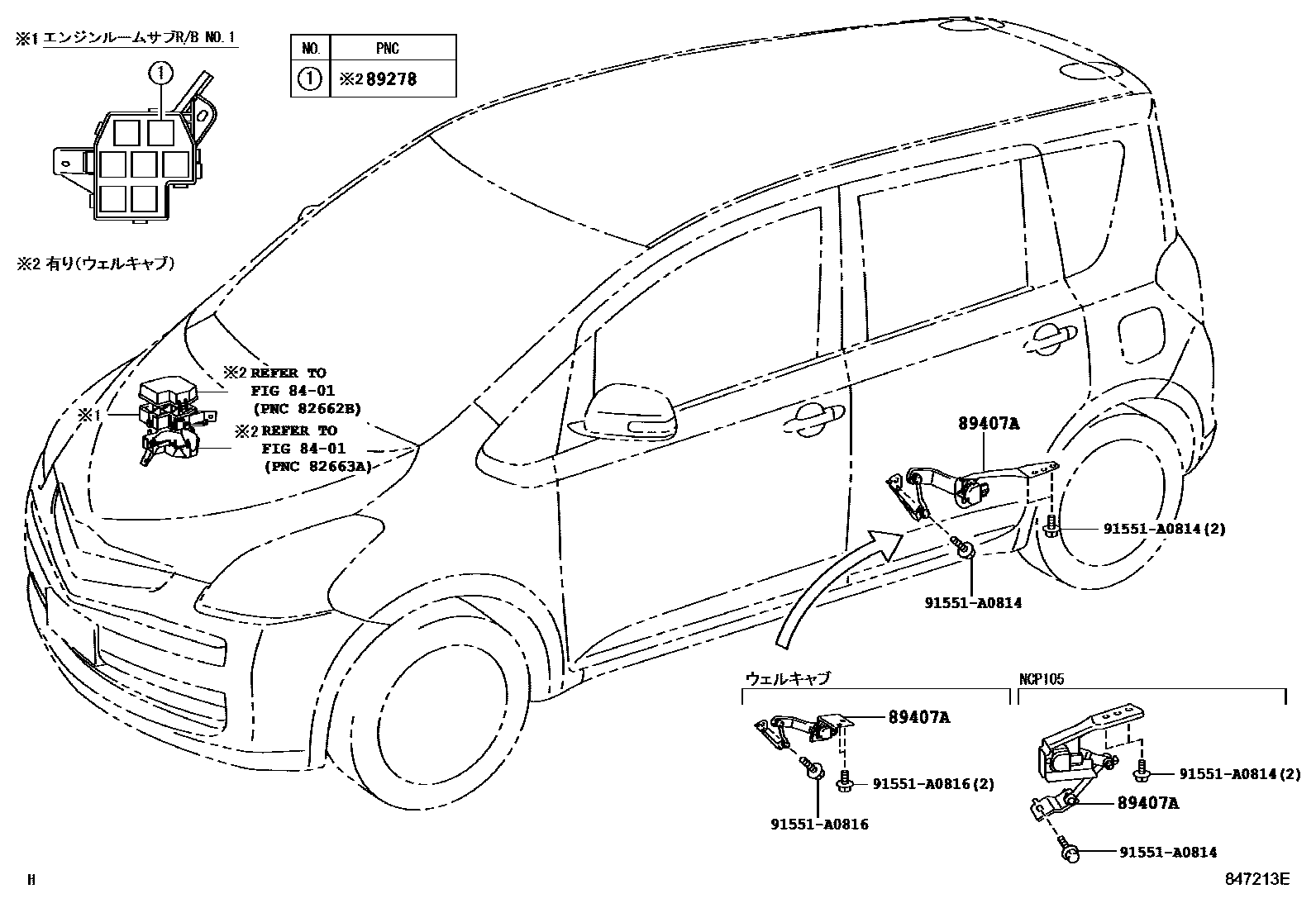

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89278RELAY, HEIGHT CONTROL

main90987-02025i200511-200712

89407ASENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-52010i200509-200608

main89407-52011i200712-201008

main89407-52060i200704-200712

main89407-52070i200511-200609

main89407-52130i200609-200611

main89407-52131i200612-200712

91551A0814

main91551-A0814

91551A0816

main91551-A0816

5 parts on this diagram · 1 diagram in section

ELECTRONIC HEIGHT CONTROL for Toyota RACTIS

This section contains 5 genuine Toyota parts for the ELECTRONIC HEIGHT CONTROL system of the Toyota RACTIS. Key components include: SWITCH & RELAY & COMPUTER, RELAY, HEIGHT CONTROL, SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH.
