Toyota RACTIS — ECO-RUN SYSTEM

0001 1 0002 1

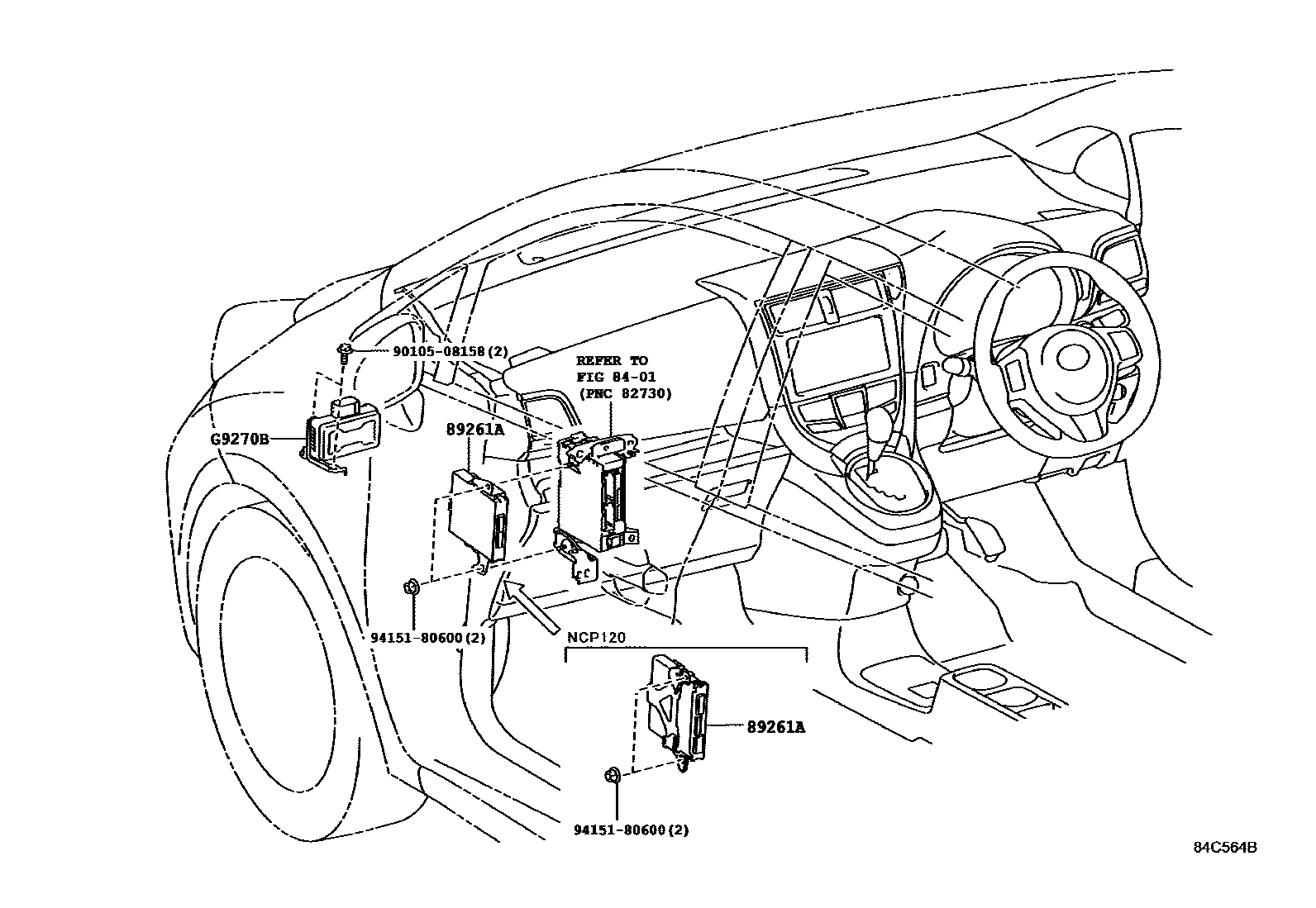

8401

89261ACOMPUTER, ENGINE STOP AND START

main89260-12070iNCP120201208-201212

main89260-12071iNCP120201301-201405

main89260-52050iNCP120201405-201409

main89260-52051iNCP120201410

main89260-52060iNSP120201405-201409

main89260-52061iNSP120201410

main89690-52082iNSP120201111-201208

sub89690-52083

G9270BCONVERTER ASSY, ECO RUN VEHICLE

mainG92C052030iNSP120201111-201208

mainG92C052031iNSP120201311-201405

subG92C0-52050

sub90159-50385

subF1334-52020

9010508158

main90105-08158

9415180600

main94151-80600

5 parts on this diagram · 2 diagrams in section
