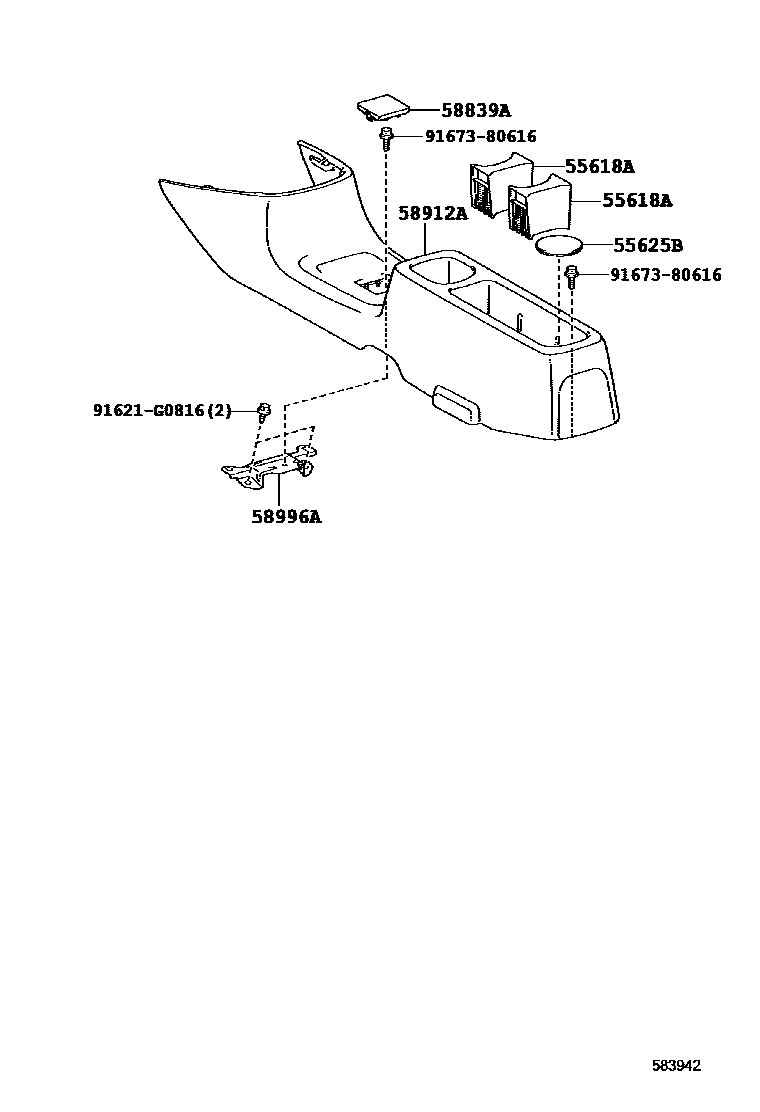

Toyota RACTIS — CONSOLE BOX & BRACKET

0001 1 0002 1

55618AHOLDER, CONSOLE BOX CUP

main55618-52080-C0×2iNSP122;NCP12#,NSP120..G201011-201405

BLACK,TRIM2#

55625BTRAY, INSTRUMENT PANEL CUP HOLDER

main55625-52090-C0iNSP122;NCP12#,NSP120..G201011-201405

BLACK,TRIM2#

58839ACOVER, CONSOLE BOX HOLE

main58839-52020-C0iNSP122;NCP12#,NSP120..G201011-201405

BLACK,TRIM2#

58912ABOX, REAR CONSOLE

main58911-52180-C0iNSP120..X201011-201405

BLACK,TRIM2#

main58911-52190-C0iNCP125..LEPIC201011-201405

BLACK,TRIM2#,4#,8#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-52020iNCP12#,NSP12#201011-201405

91621G0816

main91621-G0816

9167380616

main91673-80616

7 parts on this diagram · 2 diagrams in section
