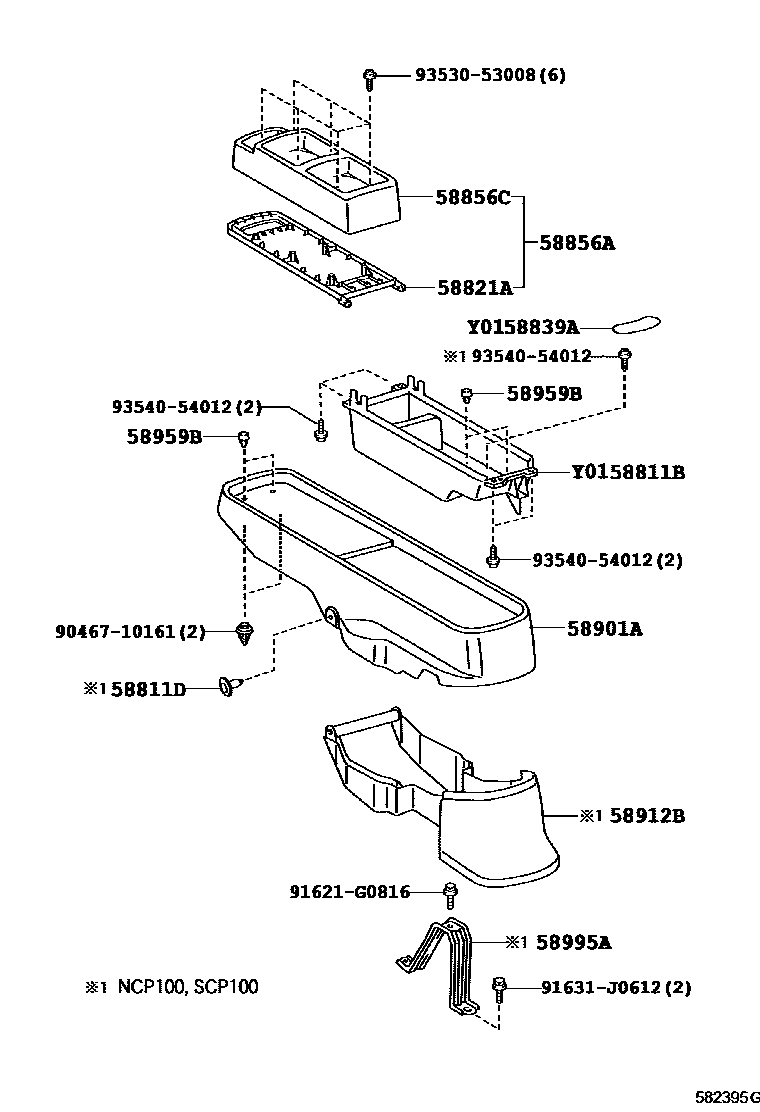

Toyota RACTIS — CONSOLE BOX & BRACKET

58811BBOX, CONSOLE

main58811-52010-B0iNCP105,SCP100..X200509-200712

DK.GRAY,TRIM1#

58811DCLIP(FOR CONSOLE BOX)

main90467-07043-B5×2iNCP100200509-200712

DK.GRAY,TRIM1#

58821APANEL, CONSOLE

main58821-52040-B0iNCP105,SCP100..X200509-200712

DK.GRAY,TRIM1#

58839ACOVER, CONSOLE BOX HOLE

main58839-52010iNCP10#,SCP100200509-200712

58856AHOLDER, CONSOLE BOX

main58805-52010-B0iNCP105..X200509-200712

DK.GRAY,TRIM10,11,4#

58856CHOLDER, CONSOLE

main58856-52010-B0iNCP105,SCP100..X200509-200712

DK.GRAY,TRIM1#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-52100-B0iNCP105,SCP100..X200509-200712

DK.GRAY,TRIM1#

58912BBOX, REAR CONSOLE, LOWER

main58912-52020-B0iNCP100200509-200712

DK.GRAY,TRIM1#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×4iNCP10#,SCP100200509-200712

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-52030iNCP100,SCP100200509-200712

9046710161

main90467-10161

91621G0816

main91621-G0816

91631J0612

main91631-J0612

9353053008

main93530-53008

9354054012

main93540-54012

15 parts on this diagram · 1 diagram in section
