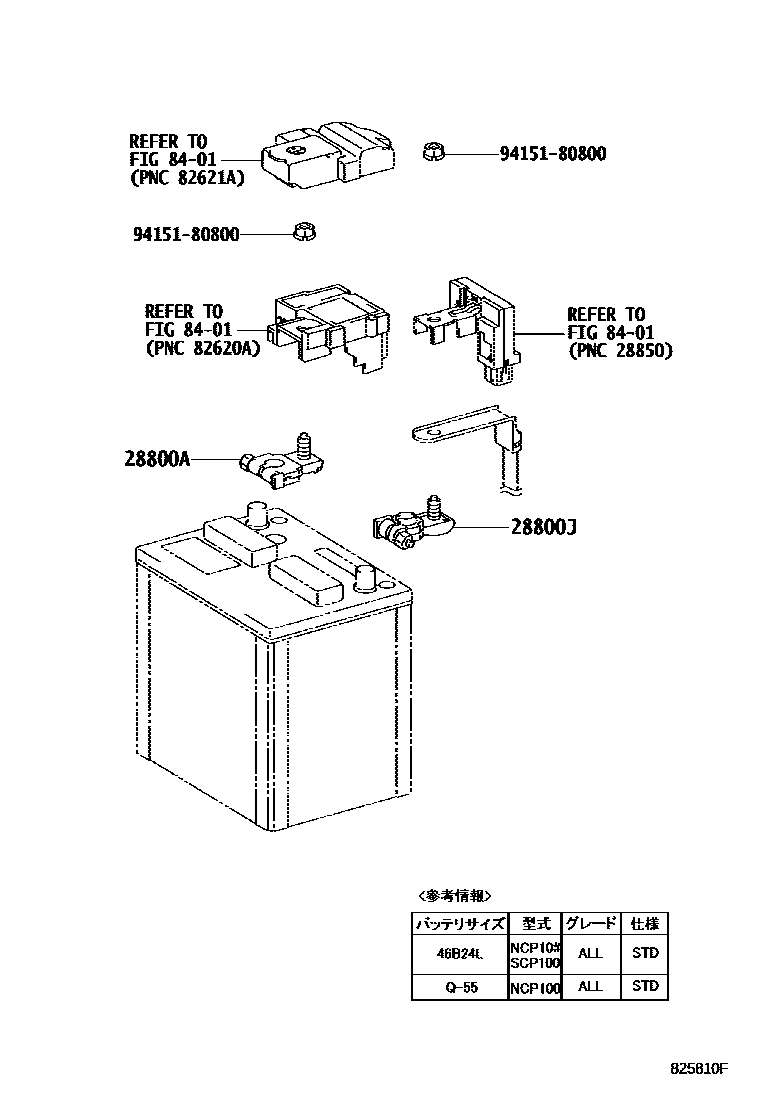

Toyota RACTIS — BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i200910

main90982-05055i200509-200712

28800JTERMINAL, BATTERY NEGATIVE

main90982-06058i200509-200712

main90982-06059i200910

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180800

main94151-80800

4 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota RACTIS

This section contains 4 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota RACTIS. Key components include: TERMINAL, BATTERY POSITIVE, TERMINAL, BATTERY NEGATIVE, SWITCH & RELAY & COMPUTER.
