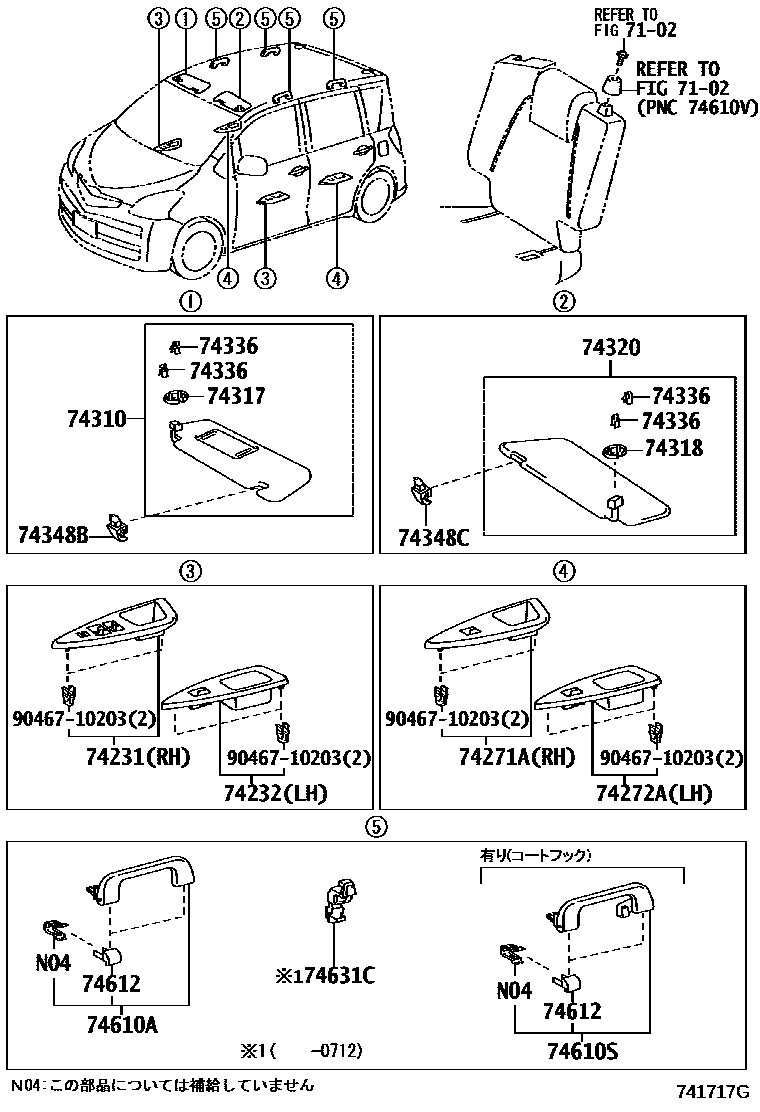

Toyota RACTIS — ARMREST & VISOR
7102REAR SEAT & SEAT TRACK
74231PANEL, FRONT ARMREST BASE, UPPER RH
DK.GRAY,TRIM10,11,4#
DK.GRAY,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
DK.GRAY,TRIM10,11
DK.GRAY,TRIM1#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
DK.GRAY,TRIM10,11,4#
DK.GRAY,TRIM1#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM10,11,4#
74310VISOR ASSY, RH
LT.GRAY,TRIM10,11,4#
LT. GRAY,TRIM10,11
LT. GRAY,TRIM1#
LT. GRAY,TRIM1#
LT. GRAY,TRIM1#
74317COVER, VISOR BRACKET, RH
GRAY,TRIM1#
GRAY,TRIM10,11
74318COVER, VISOR BRACKET, LH
GRAY,TRIM1#
74320VISOR ASSY, LH
LT.GRAY,TRIM1#,4#
LT. GRAY,TRIM1#
LT. GRAY,TRIM1#
LT.GRAY,TRIM1#,4#
LT. GRAY,TRIM1#
LT. GRAY,TRIM1#
74336CLIP, VISOR ARM SET
74348BHOLDER, VISOR, RH
GRAY,TRIM10,11
GRAY,TRIM1#
74348CHOLDER, VISOR, LH
GRAY,TRIM1#
74610AGRIP SUB-ASSY, ASSIST
LT.GRAY,TRIM1#
LT.GRAY,TRIM10,11
LT.GRAY,TRIM10,11,4#
74610SGRIP ASSY, ASSIST
LT.GRAY,TRIM10,11,4#
LT.GRAY,TRIM10,11
LT.GRAY,TRIM1#
74612COVER, ASSIST GRIP
LT.GRAY,TRIM1#
LT.GRAY,TRIM10,11
LT.GRAY,TRIM10,11,4#
74631CHOOK, COAT
LT.GRAY,TRIM10,11,4#
9046710203
main90467-10203
17 parts on this diagram · 1 diagram in section
ARMREST & VISOR for Toyota RACTIS
This section contains 17 genuine Toyota parts for the ARMREST & VISOR system of the Toyota RACTIS. Key components include: REAR SEAT & SEAT TRACK, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH.
