Toyota RACTIS — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-52520supersedes 86101-52510i200712-201004

main86101-52530supersedes 86101-52510i200509-200712

main86101-52540supersedes 86101-52510i200509-200712

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-52490i200509-200712

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-52470supersedes 86101-52450i200509-200712

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-52500i200509-200712

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-52200i200509-200712

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-52030i200509-200712

86396NUT, ANTENNA

main86396-20040i200509-200712

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

8281952270GROMMET, WIRING HARNESS

main82819-52270

8605052160ANTENNA ASSY, TELEVISION

main86050-52160

9011906915

main90119-06915

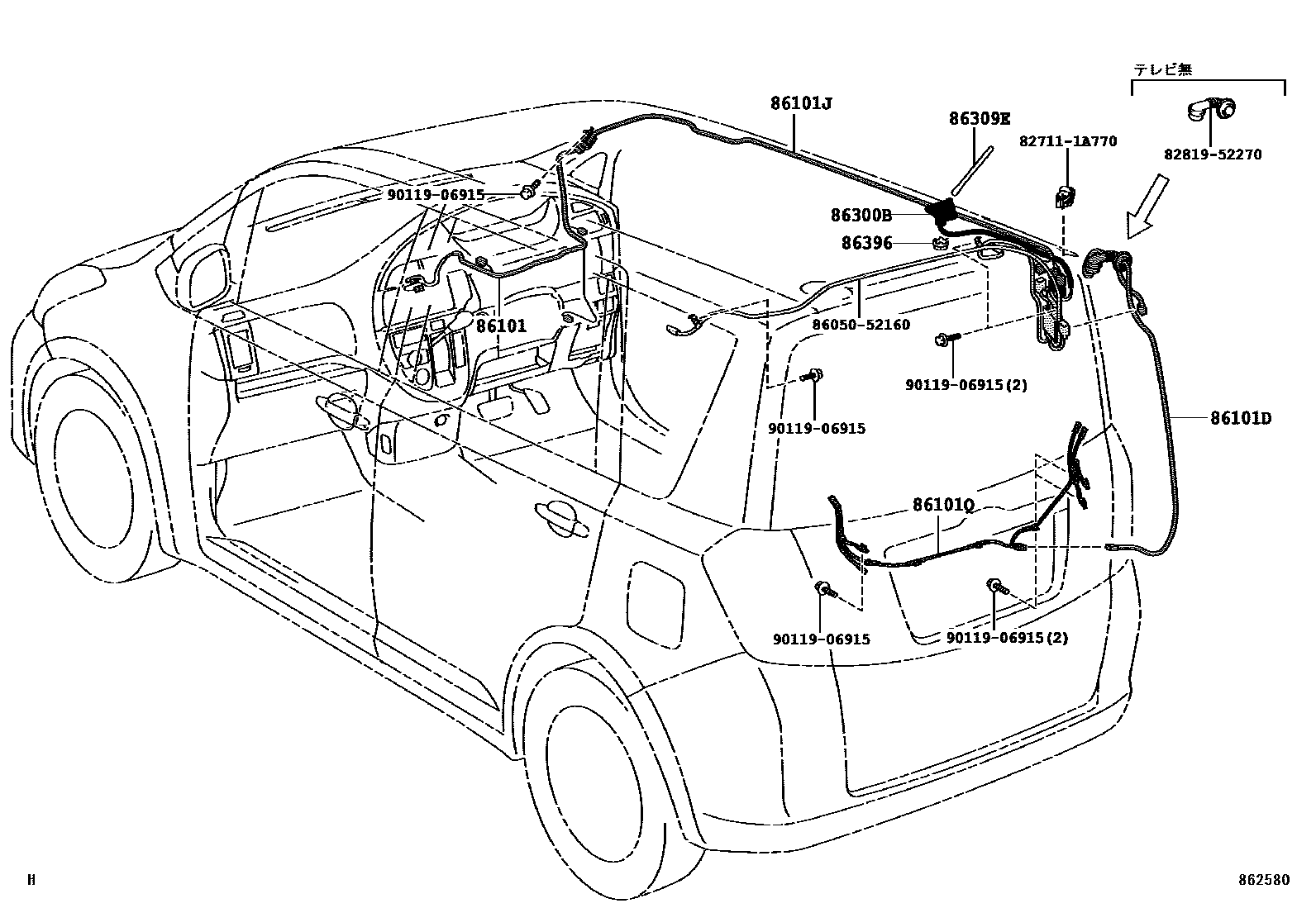

11 parts on this diagram · 1 diagram in section

ANTENNA for Toyota RACTIS

This section contains 11 genuine Toyota parts for the ANTENNA system of the Toyota RACTIS. Key components include: CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.2, CORD SUB-ASSY, ANTENNA, NO.4, ANTENNA ASSY, AMPLIFIER, NO.1.
