Toyota RACTIS — ALTERNATOR

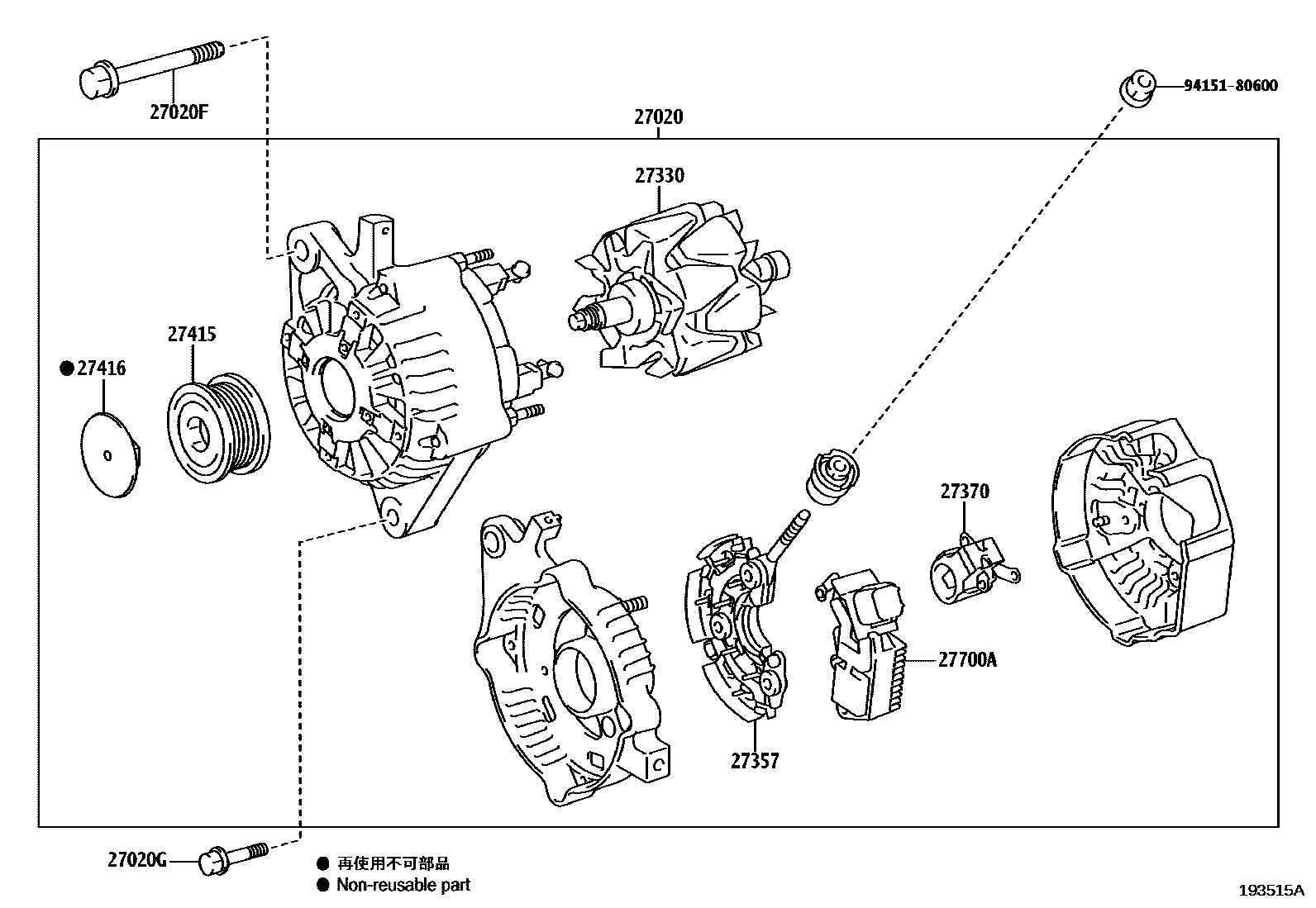

Parts diagram

27020ALTERNATOR ASSY

main27060-21131i201011-201207

main27060-21180i201208-201405

main27060-21200i201405

main27060-47110supersedes 27060-47210i201208-201405

main27060-47140i201111-201207

main27060-47150i201111-201405

main27060-47250i201208-201405

main27060-47270i201405

27020FBOLT, NO.1(FOR ALTERNATOR)

main90105-10075i201011-201405

27020GBOLT, NO.2(FOR ALTERNATOR)

main90119-08D02i201202-201208

main91671-80845i201011-201202

27330ROTOR ASSY, ALTERNATOR

main27330-30130i201011-201208

main27330-47310i201208-201405

main27330-23130i201111-201405

main27330-30070i201011-201405

main27330-47330i201405

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22200i201011-201208

main27357-47170i201111-201208

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-23120i201011-201208

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0M010i201208-201305

main27415-0M011i201405-201607

main27415-0Y060supersedes 27415-0Y051i201011-201306

main27415-0Y061i201405-201607

27416CAP, ALTERNATOR PULLEY

main27416-0W050i201405-201607

27700AREGULATOR ASSY, GENERATOR

main27700-28080i201011-201208

main27700-33030i201111-201207

9415180600

main94151-80600

10 parts on this diagram · 7 diagrams in section

ALTERNATOR for Toyota RACTIS

This section contains 32 genuine Toyota parts for the ALTERNATOR system of the Toyota RACTIS. Key components include: RADIATOR & WATER OUTLET, ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), BOLT, NO.1(FOR ALTERNATOR), BOLT, NO.2(FOR ALTERNATOR).
