Toyota RACTIS — ABS & VSC
4102REAR AXLE SHAFT & HUB
8401SWITCH & RELAY & COMPUTER
88263MRELAY, ABS SOLENOID
88263NRELAY, ABS MOTOR
89183ASENSOR, YAWRATE
89441ASENSOR, DECELERATION
89516WIRE, SKID CONTROL SENSOR
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
9017906178
main90179-06178
9167180616
main91671-80616
9167180816
main91671-80816
91671A0614
main91671-A0614
91671A0616
main91671-A0616

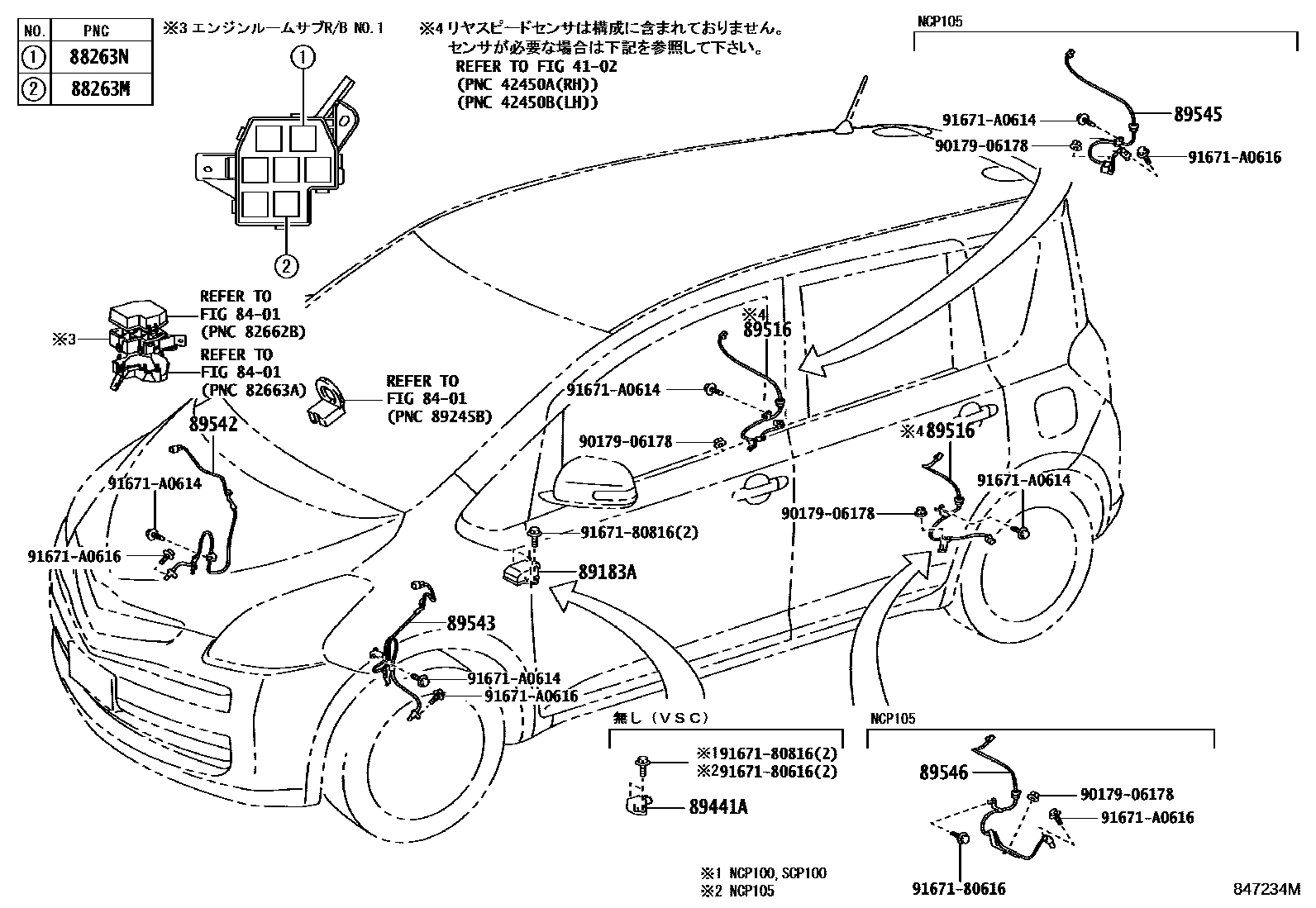

16 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota RACTIS
This section contains 16 genuine Toyota parts for the ABS & VSC system of the Toyota RACTIS. Key components include: REAR AXLE SHAFT & HUB, SWITCH & RELAY & COMPUTER, RELAY, ABS SOLENOID, RELAY, ABS MOTOR, SENSOR, YAWRATE.
