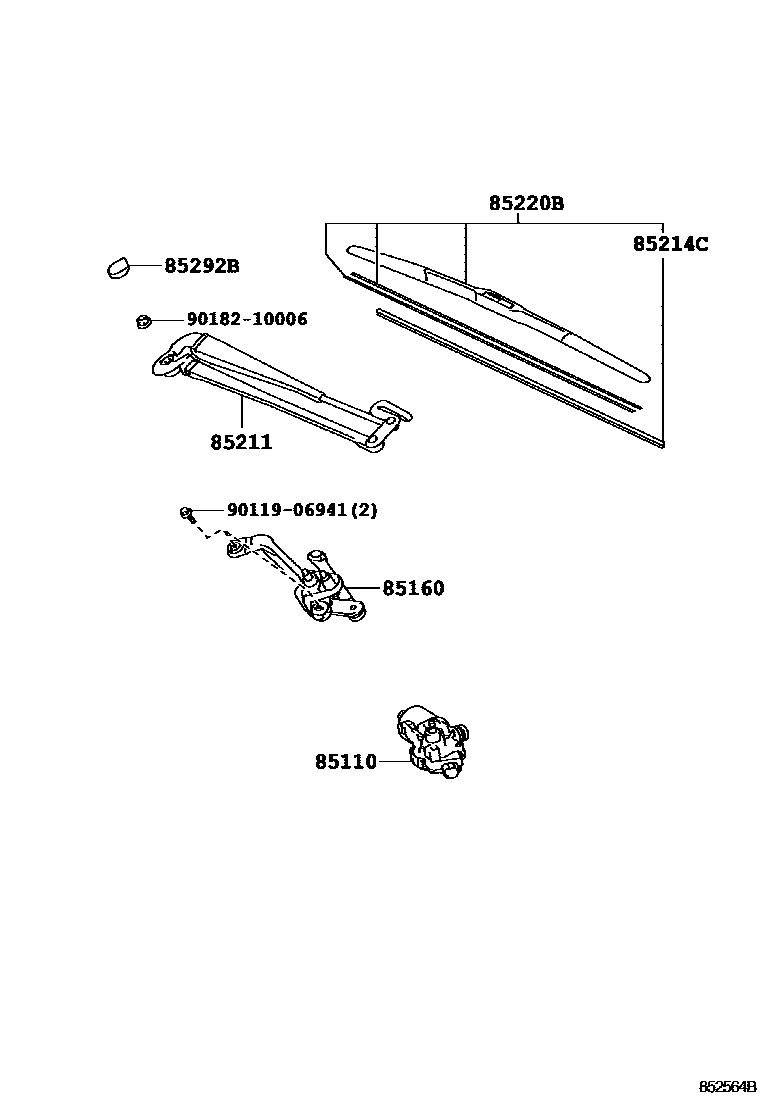

Toyota RACTIS — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52570iNCP120201011-201405

main85110-52770iNCP120201405

85160LINK ASSY, WINDSHIELD WIPER

main85150-52480iNCP120201011-201111

main85150-52660iNCP120201111-201405

85211ARM, FRONT WIPER

main85211-52360iNCP120201011-201111

sub85211-52500

main85211-52480iNCP120201111-201112

main85211-52481iNCP120201112-201405

85214CRUBBER, WIPER BLADE, CENTER

main85214-28080iNCP120201011-201112

main85214-52070iNCP120201112-201405

85220BBLADE, FRONT WIPER

main85212-52190iNCP120201011-201104

main85212-52240iNCP120201104-201111

main85212-52270iNCP120201112-201203

main85212-52271iNCP120201204-201405

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iNCP120201011-201405

9011906941

main90119-06941

9018210006

main90182-10006

8 parts on this diagram · 1 diagram in section
