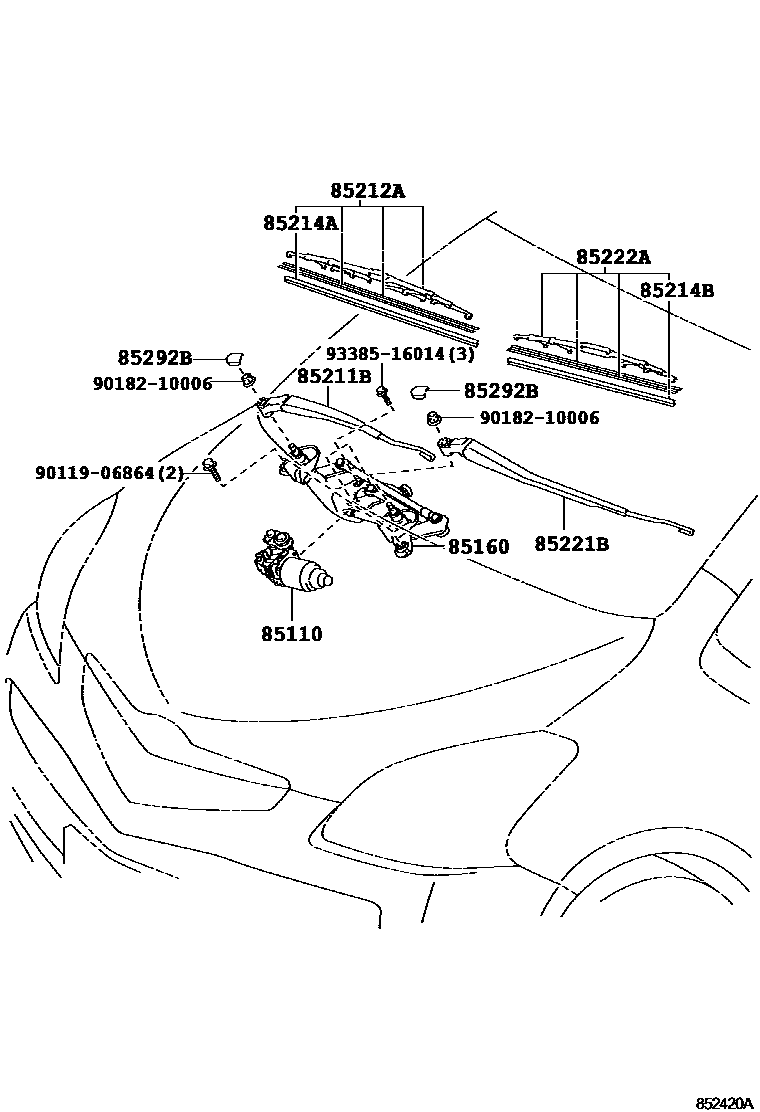

Toyota RACTIS — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52330iSCP100200910

85160LINK ASSY, WINDSHIELD WIPER

main85150-52300iSCP100200910

85211BARM, FRONT WIPER, RH

main85211-52260iSCP100200910

85212ABLADE, FR WIPER, RH

main85212-30370iSCP100200910

85214ARUBBER, WIPER, RH

main85214-50100iSCP100200910

85214BRUBBER, WIPER, LH

main85214-68011iSCP100200910

85221BARM, FRONT WIPER, LH

main85221-52260iSCP100200910

85222ABLADE, FR WIPER, LH

main85222-68011iSCP100200910

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iSCP100200910

9011906864

main90119-06864

9018210006

main90182-10006

9338516014

main93385-16014

12 parts on this diagram · 1 diagram in section
