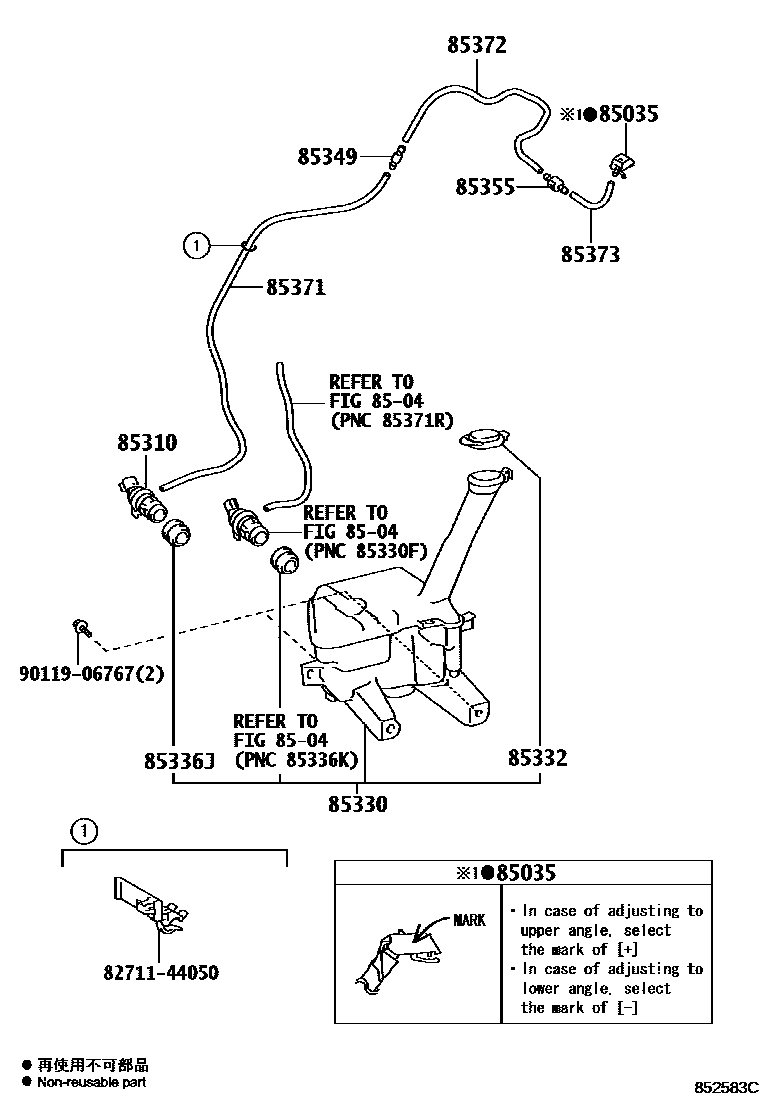

Toyota RACTIS — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52330iNCP120201011-201405

MARK +1

main85381-52340iNCP120201011-201405

MARK +3

main85381-52350iNCP120201011-201405

MARK -1

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-71010iNCP120201011-201405

85330JAR ASSY, WINDSHIELD WASHER

main85315-52280iNCP120201011-201405

85332CAP, WINDSHIELD WASHER JAR

main85316-10270iNCP120201011-201405

85336JPROTECTOR, WASHER JAR

main85336-60300iNCP120201011-201405

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iNCP120201011-201405

85355VALVE, WINDSHIELD WASHER HOSE

main85321-26020iNCP120201011-201405

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iNCP120201011-201405

L=1450(*H,L=760)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080×3iNCP120201011-201405

L=1450(*H,L=640)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×3iNCP120201011-201405

L=1450(*H,L=140)

8271144050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-44050

9011906767

main90119-06767

13 parts on this diagram · 1 diagram in section
