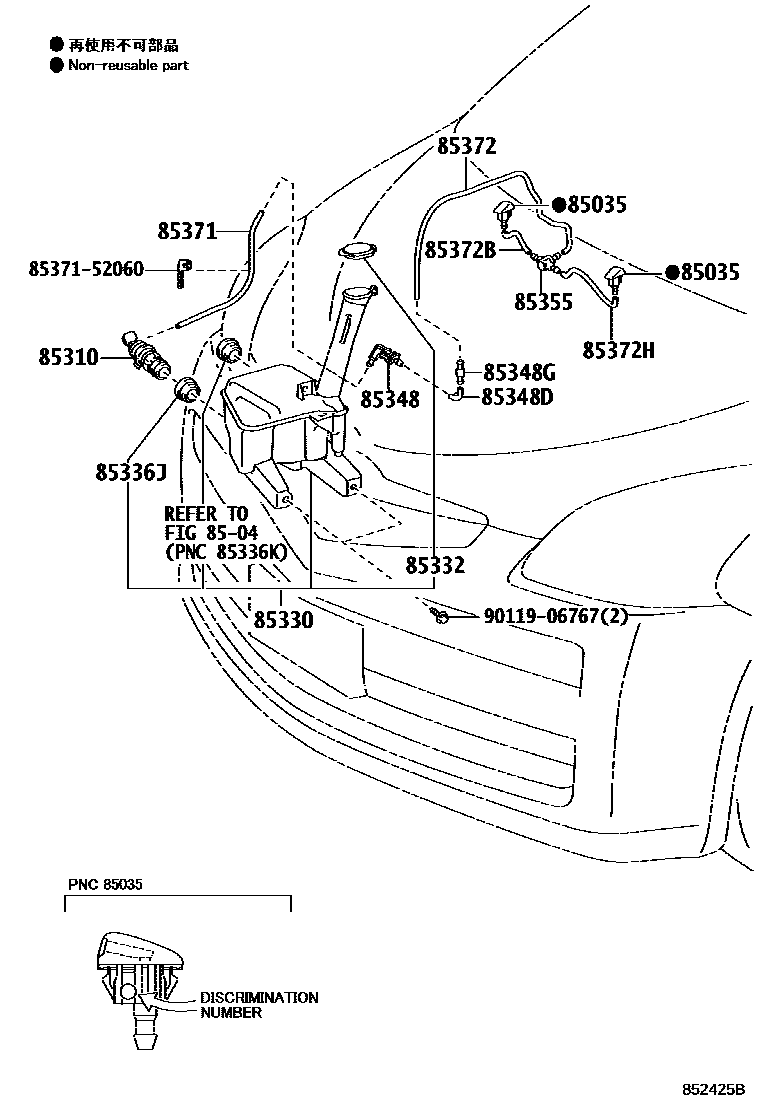

Toyota RACTIS — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52250×2iSCP100200910

MARK = 12

main85381-52300×2iSCP100200910

MARK = 14

main85381-52310×2iSCP100200910

MARK = 10

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iSCP100200910

sub85330-0D100

85330JAR ASSY, WINDSHIELD WASHER

main85315-52160iSCP100200910

85332CAP, WINDSHIELD WASHER JAR

main85316-26030iSCP100200910

85336JPROTECTOR, WASHER JAR

main85336-60300iSCP100200910

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85385-52310iSCP100200910

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85336-12230iSCP100200910

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iSCP100200910

85355VALVE, WINDSHIELD WASHER HOSE

main85321-30080iSCP100200910

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iSCP100200910

L=1450(*H,L=720)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299iSCP100200910

L=1000(*H,L=370)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-06013iSCP100200910

L=1000(*H,L=95)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-62031iSCP100200910

L=315

8537152060HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52060

9011906767

main90119-06767

16 parts on this diagram · 1 diagram in section
