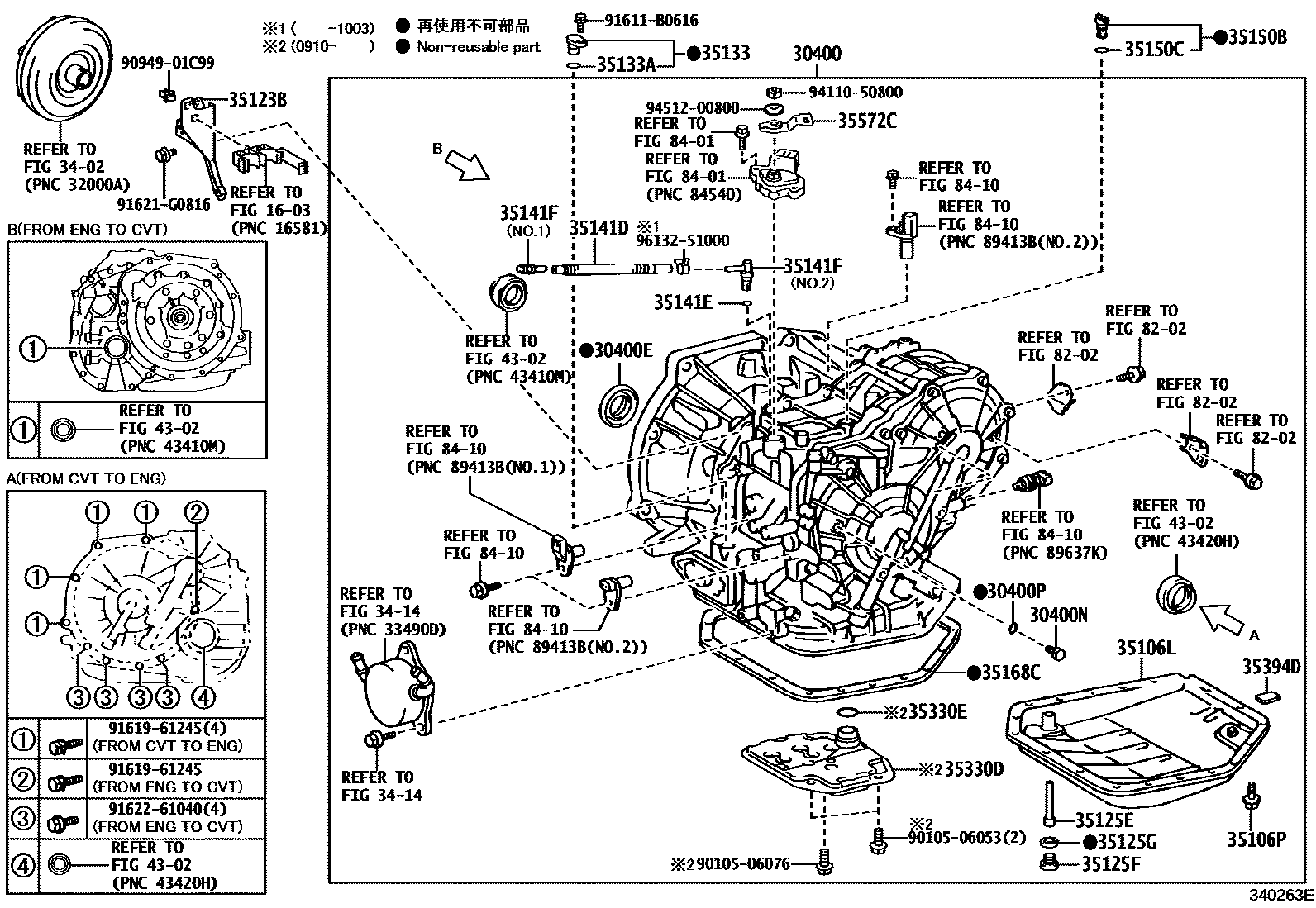

Toyota RACTIS — TRANSAXLE ASSY(CVT)

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-52150iSCP100200910-201008

30400ESEAL, TYPE T OIL(FOR CVT OIL PUMP)

main90311-42039iSCP100200910

30400NPLUG, REFILL(CVT)

main90341-18061iSCP100200910-201008

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iSCP100200910-201008

3402

3414

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-52060iSCP100200910

sub35106-52061

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173×15iSCP100200910

35123BSKIRT,TRANSMISSION BREATHER

main35123-52011iSCP100200910

35125ETUBE, OVERFLOW(CVT)

main35125-52130iSCP100200910-201008

35125FPLUG, OVERFLOW(CVT)

main90341-12034iSCP100200910-201008

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iSCP100200910-201008

35133PLUG, TRANSMISSION OIL FILLER

main35133-52010iSCP100200910-201008

35133ARING, O (FOR TRANSMISSION OIL FILLER PLUG)

main90301-11001iSCP100200910-201008

35141DHOSE(FOR BREATHER PLUG)

main90447-11055iSCP100200910

35141ERING, O(FOR BREATHER PLUG)

main90301-08015iSCP100200910-201008

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03149iSCP100200910

NO.1

main90930-03156iSCP100200910

NO.2

35150BPLUG ASSY, TRANSMISSION CASE

main35150-44010iSCP100200910-201008

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iSCP100200910-201008

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-52040iSCP100200910

35330DSTRAINER ASSY, OIL

main35330-52031iSCP100200910-201008

35330ERING, O (FOR OIL STRAINER)

main90301-22014iSCP100200910-201008

35394DMAGNET, OIL CLEANER(CVT)

main35394-48010×3iSCP100200910

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-52070iSCP100200910-201008

4302

8202

8401

8410

9010506053

main90105-06053

9010506076

main90105-06076

9094901C99

main90949-01C99

91611B0616

main91611-B0616

9161961245

main91619-61245

91621G0816

main91621-G0816

9162261040

main91622-61040

9411050800

main94110-50800

9451200800

main94512-00800

9613251000

main96132-51000

39 parts on this diagram · 1 diagram in section
