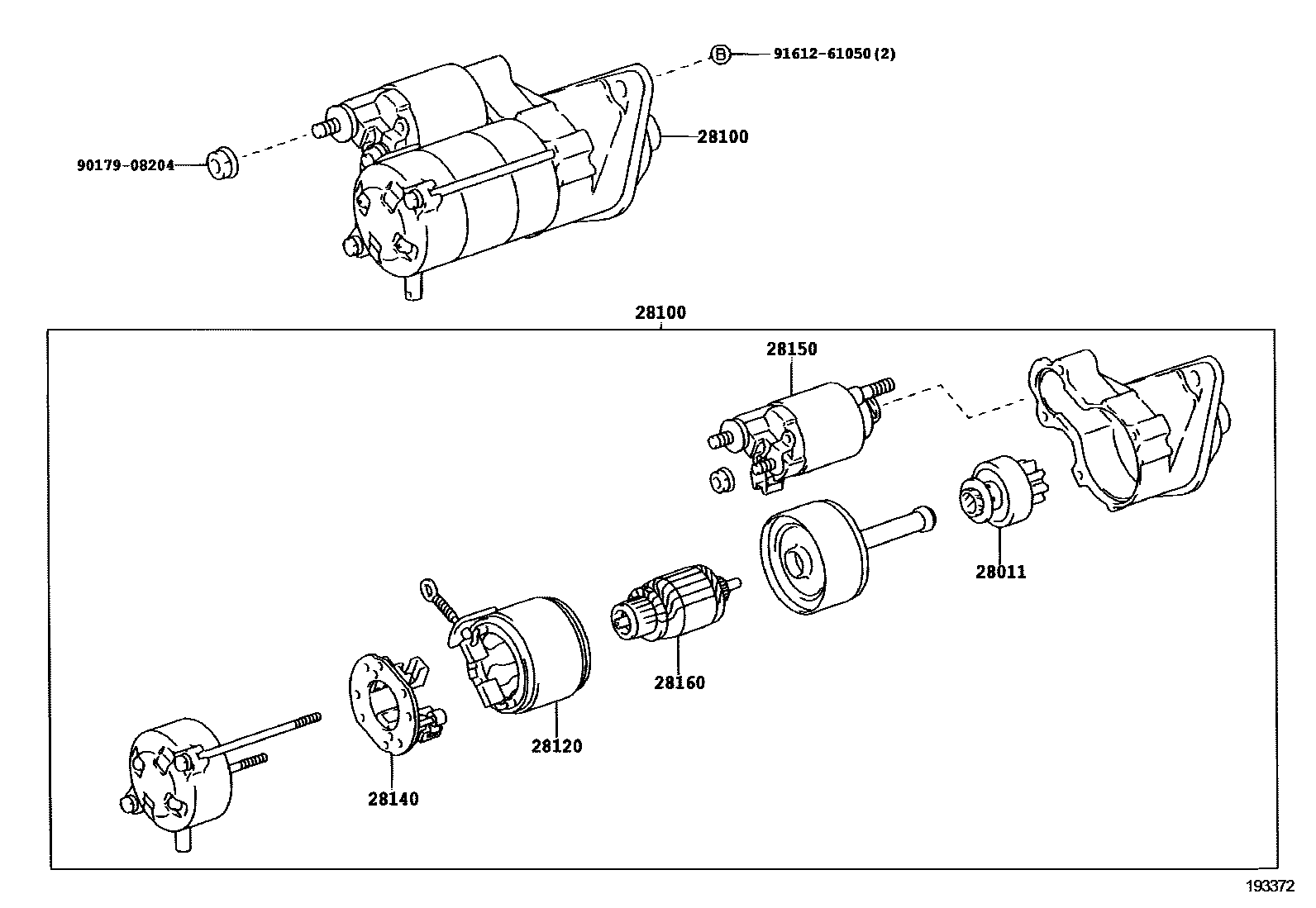

Toyota RACTIS — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-23030i2SZFE..SCP100200910

28100STARTER ASSY

main28100-23061i2SZFE..SCP100200910-201008

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-47120i2SZFE..SCP100200910

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i2SZFE..SCP100200910

28150SWITCH ASSY, MAGNET STARTER

main28150-21020i2SZFE..SCP100200910

28160ARMATURE ASSY, STARTER

main28160-70021i2SZFE..SCP100200910

9017908204

main90179-08204

9161261050

main91612-61050

8 parts on this diagram · 1 diagram in section
