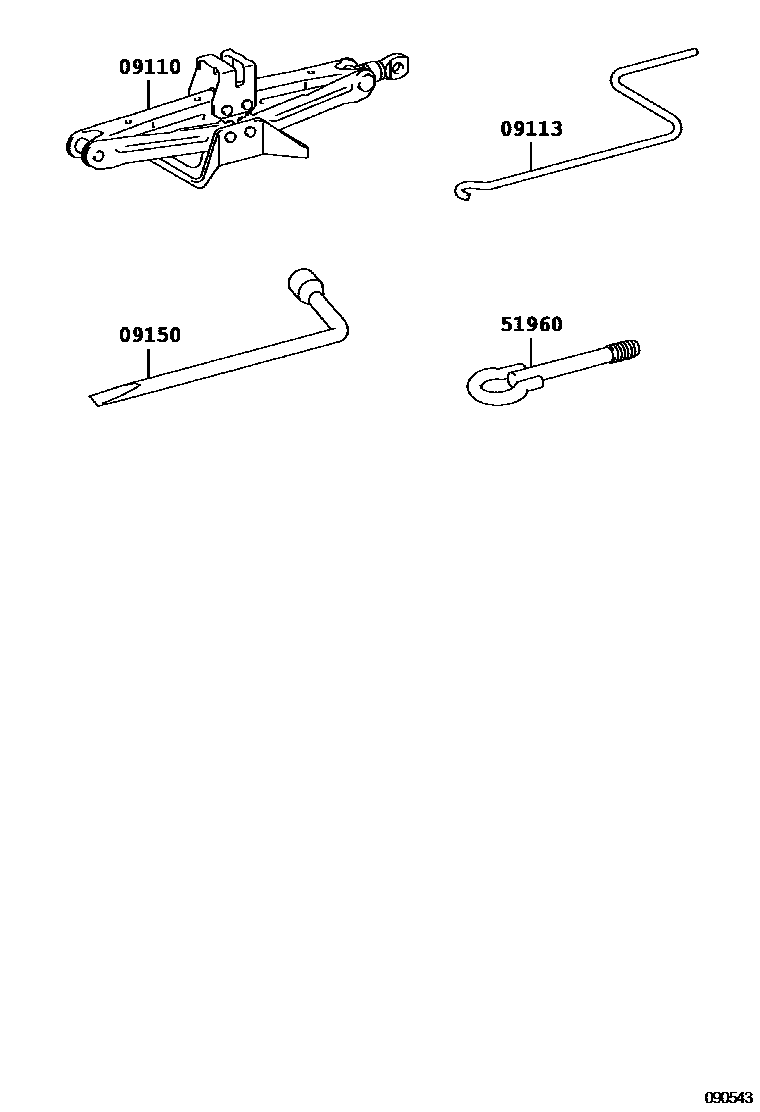

Toyota RACTIS — STANDARD TOOL

09110JACK ASSY

main09111-47010iSCP100200910

sub09111-52060

09113HANDLE, JACK

main09113-52040iSCP100200910

sub09113-20050

09150WRENCH, HUB NUT BOX

main09150-40010iSCP100200910

51960HOOK ASSY, FRONT

main51960-47020iSCP100200910

4 parts on this diagram · 1 diagram in section
