Toyota RACTIS — SIDE MOULDING

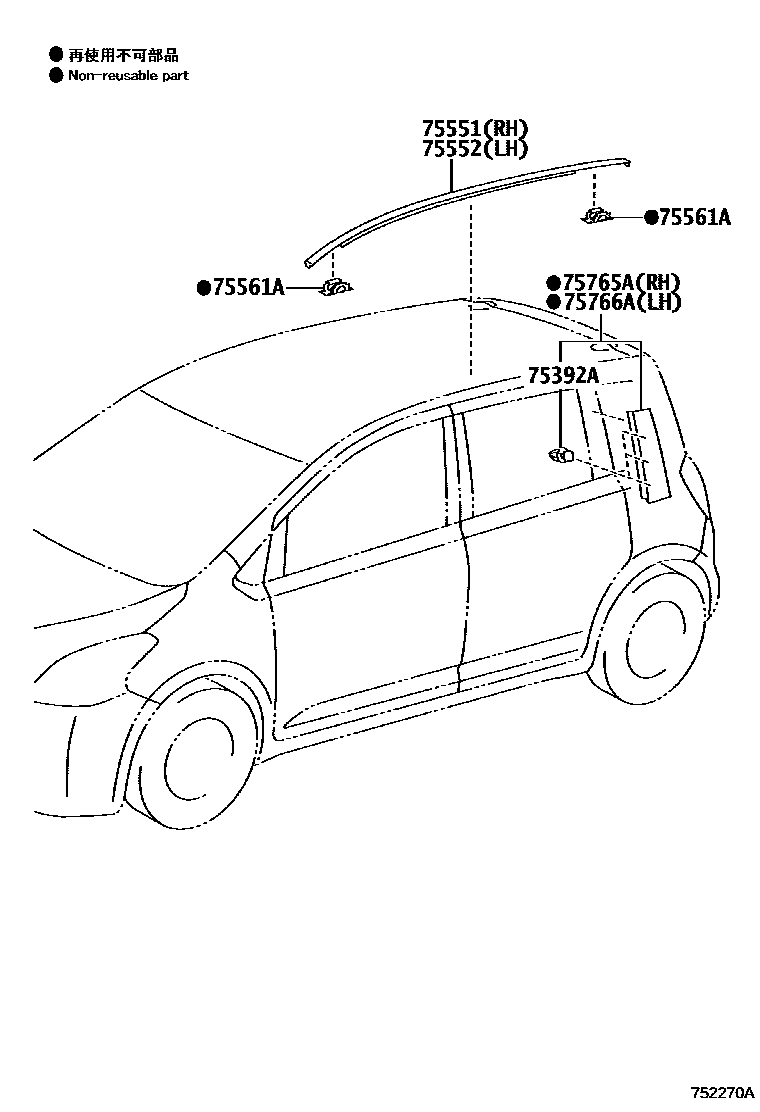

Parts diagram
75392ARETAINER, OUTSIDE MOULDING, NO.1
main75392-33010×6i200910
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-52140i200910
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75552-52120i200910
NO PAINT REQ.
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
main75561-52040×4i200910
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
main75765-52030i200910
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
main75766-52040i200910

6 parts on this diagram · 1 diagram in section

SIDE MOULDING for Toyota RACTIS

This section contains 6 genuine Toyota parts for the SIDE MOULDING system of the Toyota RACTIS. Key components include: RETAINER, OUTSIDE MOULDING, NO.1, MOULDING, ROOF DRIP SIDE FINISH, RH, MOULDING, ROOF DRIP SIDE FINISH, LH, CLIP, ROOF DRIP SIDE FINISH MOULDING, MOULDING, REAR DOOR WINDOW FRAME, REAR RH.
