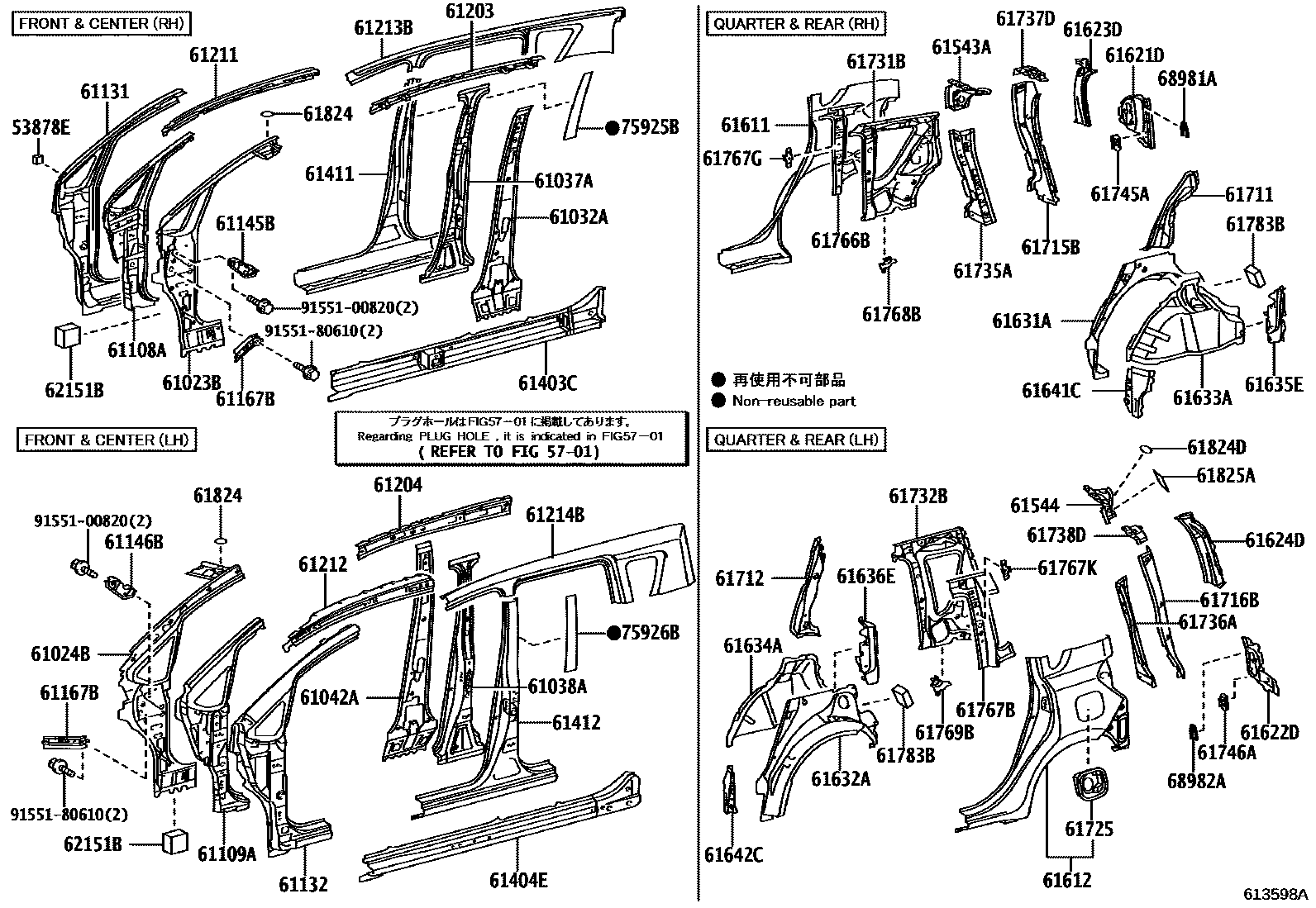

Toyota RACTIS — SIDE MEMBER

53878ESPACER, FRONT FENDER

main53878-44040iSCP100200910

5701HOLE PLUG

→ Go to FIG 57-01

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-52130iSCP100200910-201008

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-52130iSCP100200910-201008

61032APILLAR SUB-ASSY, NO.1 INNER, RH

main61032-52060iSCP100200910-201003

main61032-52061iSCP100201004

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-52905iSCP100200910

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-52905iSCP100200910

61042APILLAR SUB-ASSY, NO.1 INNER, LH

main61042-52060iSCP100200910-201003

main61042-52061iSCP100201004

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-52130iSCP100200910

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-52130iSCP100200910

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-52250iSCP100200910

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-52230iSCP100200910

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-52010iSCP100200910

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-52020iSCP100200910

61167BBRACE, FRONT BODY PILLAR, LOWER

main61167-52010iSCP100200910

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-52040iSCP100200910

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61204-52040iSCP100200910

61211RAIL, ROOF SIDE, OUTER RH

main61211-52140iSCP100200910

61212RAIL, ROOF SIDE, OUTER LH

main61212-52150iSCP100200910

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-52141iSCP100200910

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-52141iSCP100200910

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-52160iSCP100200910

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-52160iSCP100200910

61411PANEL, ROCKER, OUTER RH

main61411-52220iSCP100200910

61412PANEL, ROCKER, OUTER LH

main61412-52230iSCP100200910

61543APANEL, REAR UPPER SIDE INNER CORNER, RH

main61543-52020iSCP100200910

61544PANEL, REAR UPPER SIDE INNER CORNER, LH

main61709-52040iSCP100200910

61611PANEL, QUARTER, RH

main61601-52411iSCP100200910

61612PANEL, QUARTER, LH

main61602-52441iSCP100200910

61621DTROUGH, BACK DOOR OPENING, RH

main61621-52120iSCP100200910

61622DTROUGH, BACK DOOR OPENING, LH

main61622-52120iSCP100200910

61623DEXTENSION, QUARTER PANEL, FRONT RH

main61623-52090iSCP100200910

61624DEXTENSION, QUARTER PANEL, FRONT LH

main61624-52090iSCP100200910

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-52130iSCP100200910

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-52130iSCP100200910

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-52330iSCP100200910-201008

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-52370iSCP100200910-201008

61635EEXTENSION, QUARTER WHEEL HOUSE, RH

main61635-52070iSCP100200910

61636EEXTENSION, QUARTER WHEEL HOUSE, LH

main61636-52070iSCP100200910

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-52100iSCP100200910

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-52100iSCP100200910

61711PANEL, ROOF SIDE, OUTER RH

main61711-52140iSCP100200910

61712PANEL, ROOF SIDE, OUTER LH

main61712-52170iSCP100200910

61715BEXTENSION, ROOF SIDE, INNER FRONT RH

main61715-52050iSCP100200910

61716BEXTENSION, ROOF SIDE, INNER FRONT LH

main61716-52050iSCP100200910

61725BOX, FUEL INLET

main61725-52090iSCP100200910

61731BPANEL, ROOF SIDE, INNER RH

main61731-52200iSCP100200910

61732BPANEL, ROOF SIDE, INNER LH

main61732-52250iSCP100200910

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-52080iSCP100200910

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-52080iSCP100200910

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-52080iSCP100200910

61738DREINFORCEMENT, ROOF SIDE, INNER LH

main61738-52070iSCP100200910

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-52090iSCP100200910

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61745-52090iSCP100200910

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-52120iSCP100200910

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-52150iSCP100200910

61767GRETAINER, SEAT BELT ANCHOR, NO.2

main61767-44010iSCP100200910

61767KRETAINER, SEAT BELT ANCHOR, NO.2 LH

main61767-44010iSCP100200910

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-52160iSCP100200910

61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

main61769-52160iSCP100200910

61783BPAD, REAR WHEEL OPENING EXTENSION, NO.1

main61783-52030iSCP100200910

61824PLATE, NOISE CONTROL, NO.1

main61824-12060iSCP100200910

61824DPLATE, NOISE CONTROL, NO.1

main61824-12060iSCP100200910

61825APLATE, NOISE CONTROL, NO.2

main61825-52040iSCP100200910

62151BPAD, COWL SIDE SILENCER

main62151-52030iSCP100200910

68981ARETAINER, BACK DOOR STAY, RH

main68981-52070iSCP100200910

68982ARETAINER, BACK DOOR STAY, LH

main68981-52070iSCP100200910

75925BTAPE, BLACK OUT, NO.3 RH

main75925-52070iSCP100200910

75926BTAPE, BLACK OUT, NO.3 LH

main75926-52070iSCP100200910

9155100820

main91551-00820

9155180610

main91551-80610

71 parts on this diagram · 1 diagram in section
