Toyota RACTIS — SIDE MEMBER
5701HOLE PLUG
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61032APILLAR SUB-ASSY, NO.1 INNER, RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61117CGUSSET, SIDE PANEL TO COWL, RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61167BBRACE, FRONT BODY PILLAR, LOWER
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61211RAIL, ROOF SIDE, OUTER RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61411PANEL, ROCKER, OUTER RH
61611PANEL, QUARTER, RH
61621DTROUGH, BACK DOOR OPENING, RH
61623DEXTENSION, QUARTER PANEL, FRONT RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61635EEXTENSION, QUARTER WHEEL HOUSE, RH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61665JPLATE, SEAT BELT ANCHORAGE, RH
61703GPANEL SUB-ASSY, QUARTER, INNER RH
61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH
61711PANEL, ROOF SIDE, OUTER RH
61713BREINFORCE, ROOF SIDE, OUTER RH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61783BPAD, REAR WHEEL OPENING EXTENSION, NO.1
61824PLATE, NOISE CONTROL, NO.1
61826CPAD, NOISE SHUTTER, NO.3
62151BPAD, COWL SIDE SILENCER
67293CCUSHION, BACK DOOR STOPPER
68981ARETAINER, BACK DOOR STAY, RH
9011906748
main90119-06748
9155180610
main91551-80610
9155380820
main91553-80820

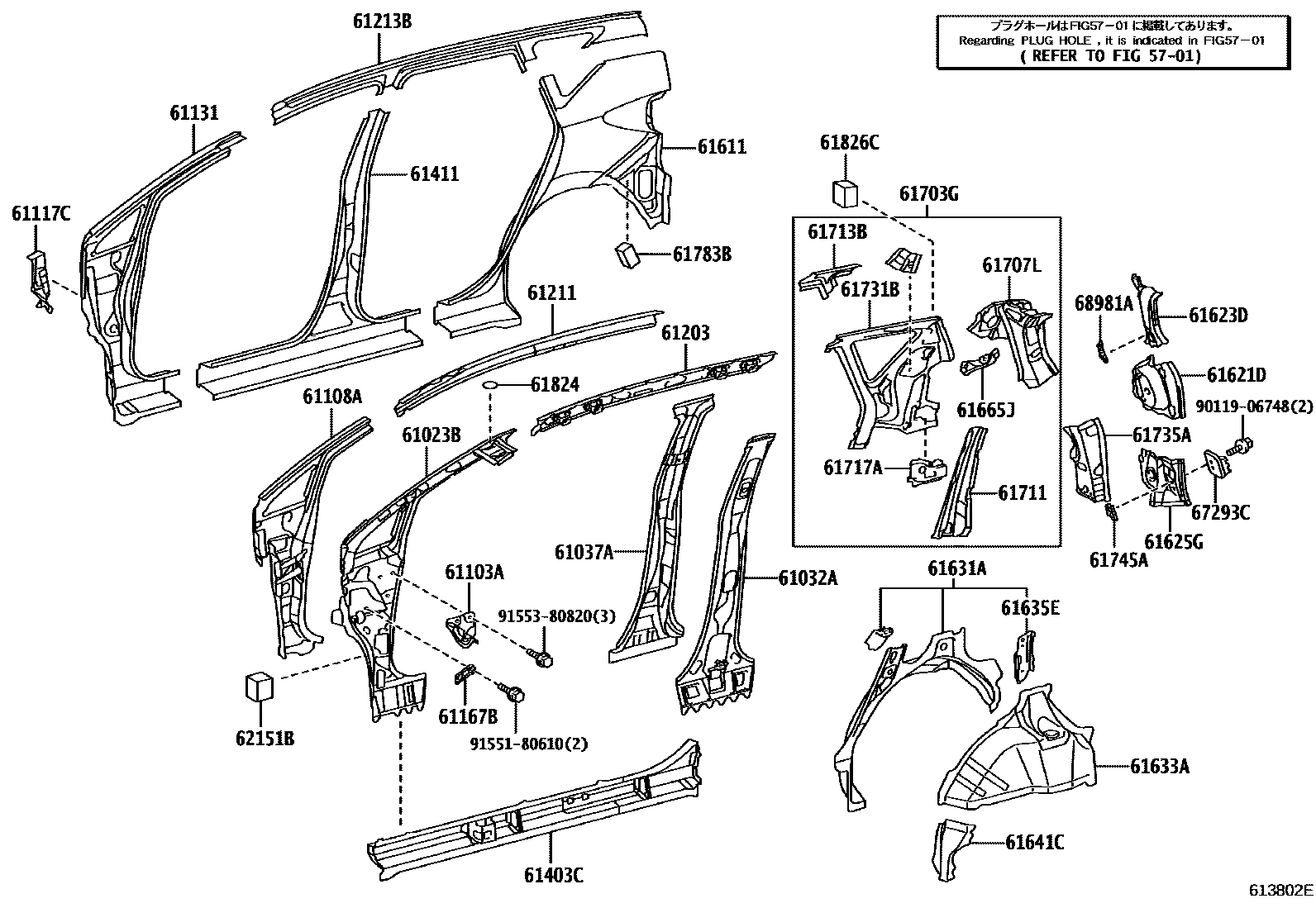

40 parts on this diagram · 2 diagrams in section
SIDE MEMBER for Toyota RACTIS
This section contains 70 genuine Toyota parts for the SIDE MEMBER system of the Toyota RACTIS. Key components include: HOLE PLUG, PILLAR SUB-ASSY, FRONT BODY, INNER RH, PILLAR SUB-ASSY, FRONT BODY, INNER LH, PILLAR SUB-ASSY, NO.1 INNER, RH, REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH.
