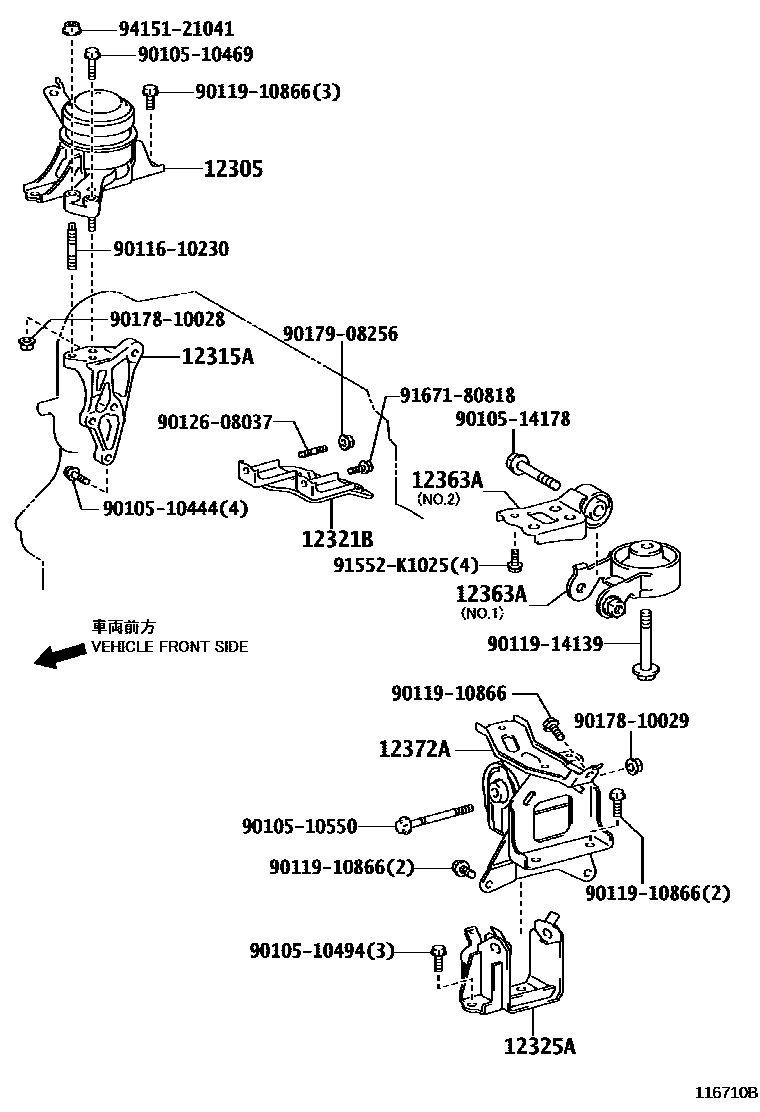

Toyota RACTIS — MOUNTING

0001 1 0002 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-21370i1NZFE..NCP120201011-201208

main12305-21520i1NZFE..NCP120201208-201405

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-21043i1NZFE..NCP120201011-201111

main12315-21044i1NZFE..NCP120201111-201405

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-12080i1NZFE..NCP120201208-201405

main43409-52020i1NZFE..NCP120201011-201208

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-21170i1NZFE..NCP120201011-201405

12363AROD, ENGINE MOVING CONTROL

main12363-21150i1NZFE..NCP120201011-201405

NO.1

main12363-21151i1NZFE..NCP120201405

NO.1

main12364-21110i1NZFE..NCP120201011-201405

NO.2

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-21310i1NZFE..NCP120201011-201405

9010510444

main90105-10444

9010510469

main90105-10469

9010510494

main90105-10494

9010510550

main90105-10550

9010514178

main90105-14178

9011610230

main90116-10230

9011910866

main90119-10866

9011914139

main90119-14139

9012608037

main90126-08037

9017810028

main90178-10028

9017810029

main90178-10029

9017908256

main90179-08256

91552K1025

main91552-K1025

9167180818

main91671-80818

9415121041

main94151-21041

21 parts on this diagram · 2 diagrams in section
