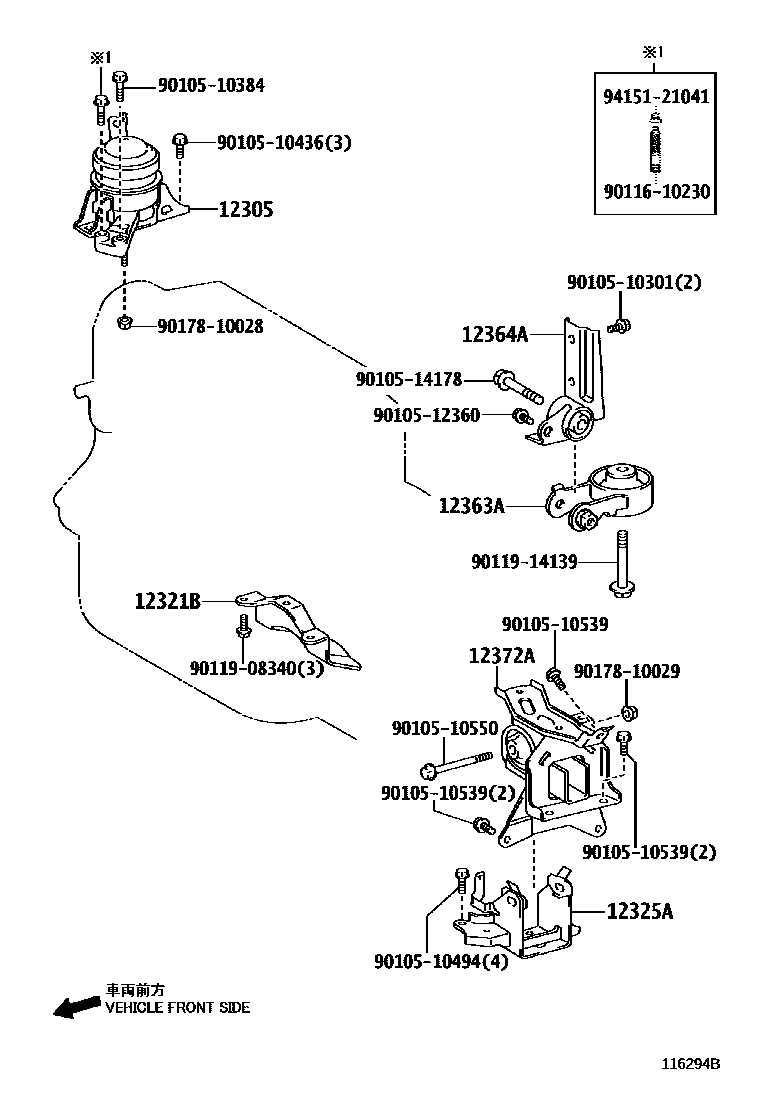

Toyota RACTIS — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12363AROD, ENGINE MOVING CONTROL
12364AROD, ENGINE LATERAL CONTROL
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510301
main90105-10301
9010510384
main90105-10384
9010510436
main90105-10436
9010510494
main90105-10494
9010510539
main90105-10539
9010510550
main90105-10550
9010512360
main90105-12360
9010514178
main90105-14178
9011610230
main90116-10230
9011908340
main90119-08340
9011914139
main90119-14139
9017810028
main90178-10028
9017810029
main90178-10029
9415121041
main94151-21041
20 parts on this diagram · 1 diagram in section
