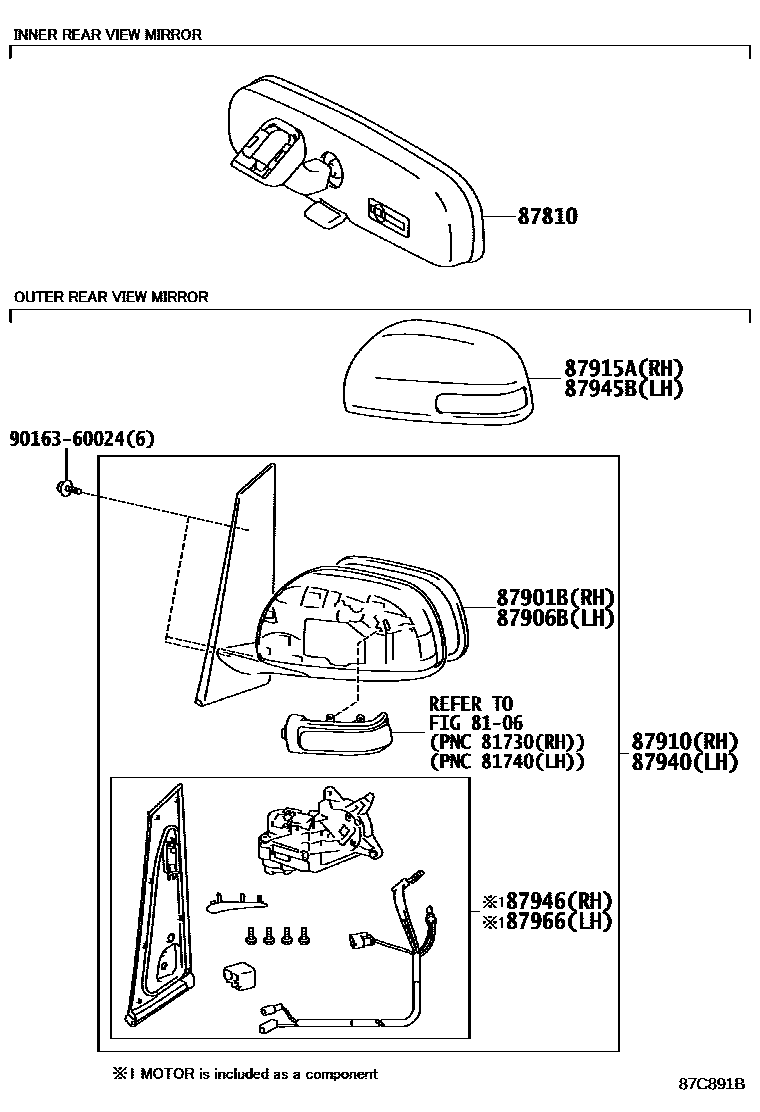

Toyota RACTIS — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.,L PACKAGE
87915ACOVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER M.M.,1E7
GRAY ME.,1G2
BLACK MC.,209
RED M.M.,3R3
BLUE ME.,8T4
BLUE ME.,8T7
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,L PACKAGE
87945BCOVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER M.M.,1E7
GRAY ME.,1G2
BLACK MC.,209
RED M.M.,3R3
BLUE ME.,8T4
BLUE ME.,8T7
87946RETRACTOR, OUTER MIRROR, RH
L PACKAGE
87966RETRACTOR, OUTER MIRROR, LH
L PACKAGE
9016360024
main90163-60024
11 parts on this diagram · 1 diagram in section
