Toyota RACTIS — METER

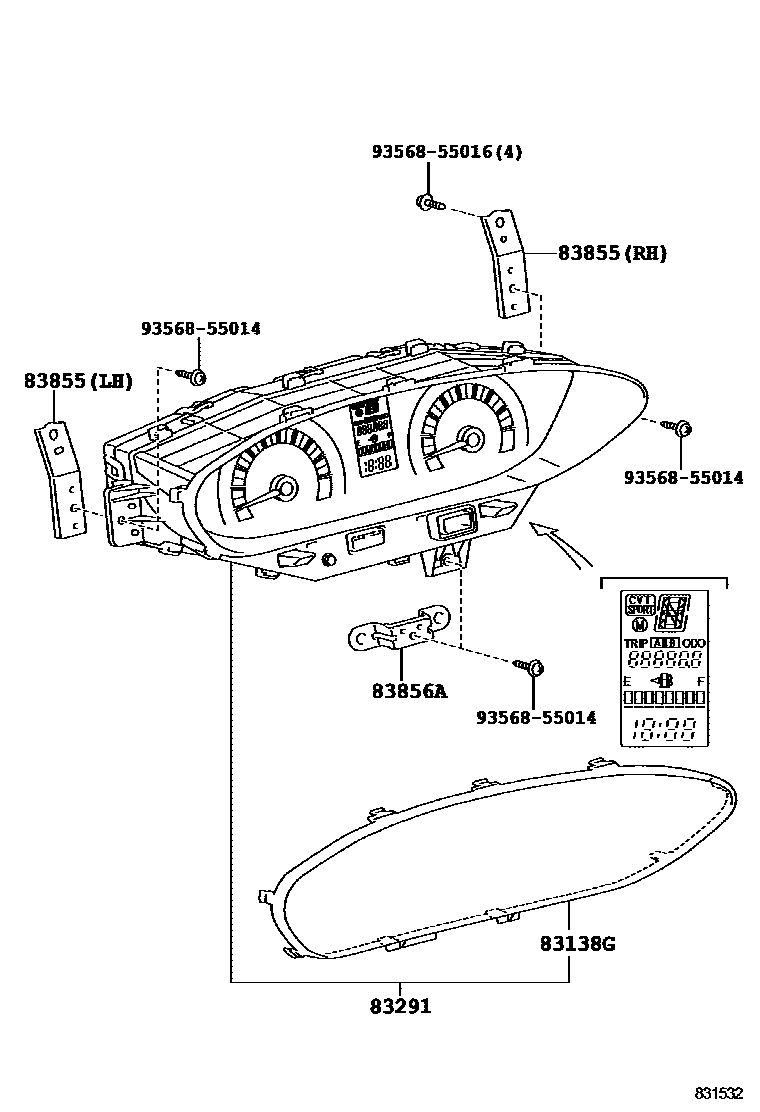

Parts diagram

83138GGLASS, COMBINATION METER

main83852-52D80i200910

83291COMPUTER, COMBINATION METER

main83801-52Q40i200910-200912

main83801-52Q41i200912

83855BRACKET, COMBINATION METER, NO.1

main83855-52D90i200910

RH

main83855-52E00i200910

LH

83856ABRACKET, COMBINATION METER, NO.2

main83855-52D80i200910

9356855014

main93568-55014

9356855016

main93568-55016

6 parts on this diagram · 1 diagram in section
