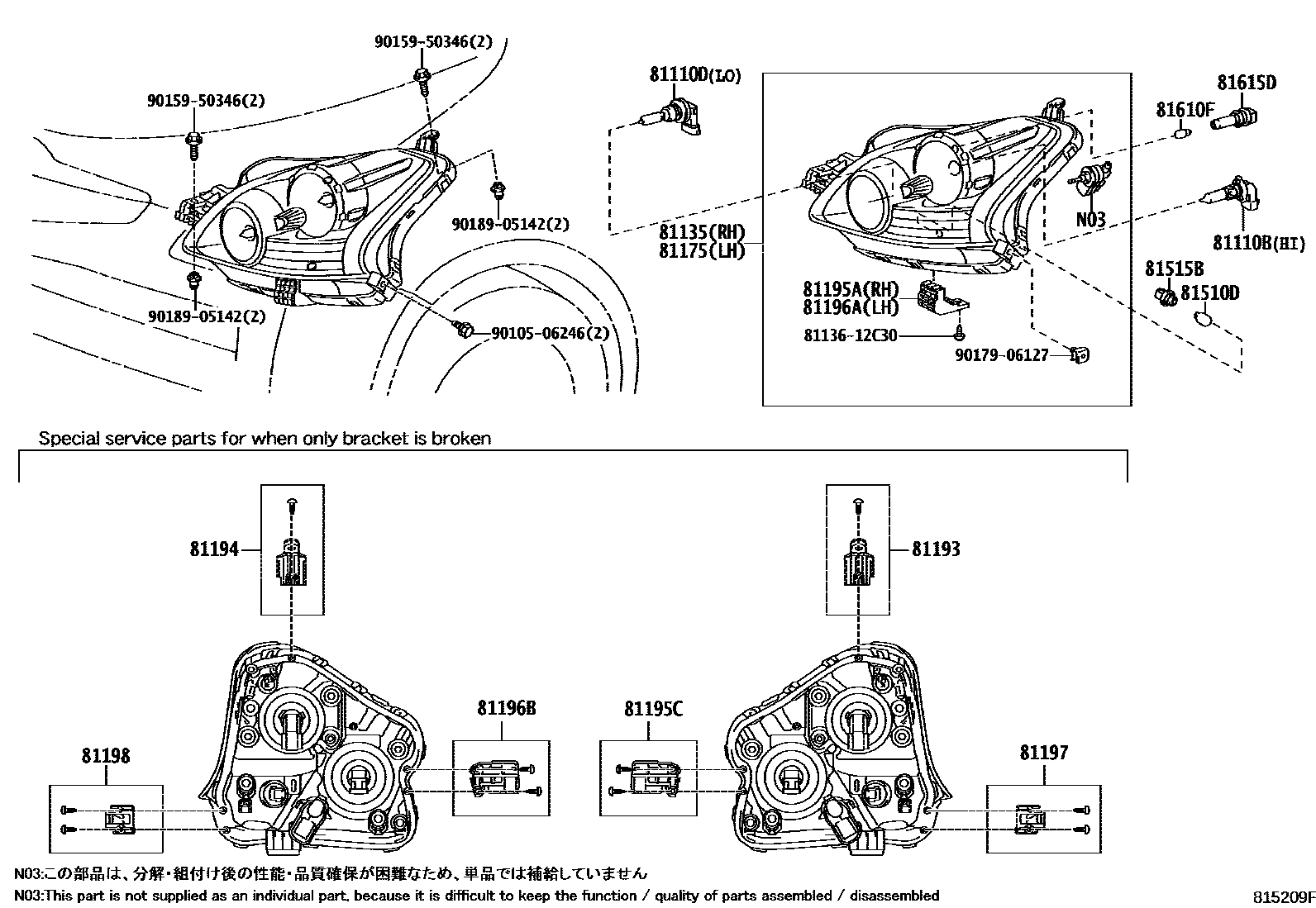

Toyota RACTIS — HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2i200910

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13082×2i200910

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-52A60i200910-201008

81175UNIT ASSY, HEADLAMP, LH

main81170-52A50i200910-201008

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-52140i200910

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-52140i200910

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main52715-52030i200910

81195CRETAINER, RH HEADLAMP PROTECTOR, LOWER LH

main81195-52120i200910-201008

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main52716-52020i200910

81196BRETAINER, LH HEADLAMP PROTECTOR, LOWER RH

main81196-52120i200910-201008

81197BRACKET, HEADLAMP, LOWER RH

main81197-52030i200910

81198BRACKET, HEADLAMP, LWR LH

main81198-52030i200910

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2i200910

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-42050×2i200910

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200910

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60046×2i200910-200912

main90075-60077×2i200912

8113612C30PROTECTOR, HEADLAMP, NO.1 RH

main81136-12C30

9010506246

main90105-06246

9015950346

main90159-50346

9017906127

main90179-06127

9018905142

main90189-05142

21 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota RACTIS

This section contains 21 genuine Toyota parts for the HEADLAMP system of the Toyota RACTIS. Key components include: BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), UNIT ASSY, HEADLAMP, RH, UNIT ASSY, HEADLAMP, LH, RETAINER, HEADLAMP PROTECTOR, UPPER RH.
